1.3 Inch IPS LCD Module: A 240x240 Full Colour Display for Embedded Projects

This 1.3-inch IPS LCD module is a compact display solution designed for integration into various electronic and embedded systems. Its high-definition IPS (In-Plane Switching) screen technology provides a colour output that is more vivid than standard TFT LCDs, ensuring good visual clarity for user interfaces, sensor readouts, or status indicators. The square 240x240 pixel resolution offers a balanced canvas for icons, text, and graphics. With a specified operating temperature range of -20°C to 70°C, this display is built to function in a variety of environmental conditions, from cool indoor settings to warmer industrial applications, providing a reliable visual component for your project.

Features and Construction

This display module combines specific hardware specifications to deliver its functionality, centred around a clear screen and flexible connectivity options.

Material and Build

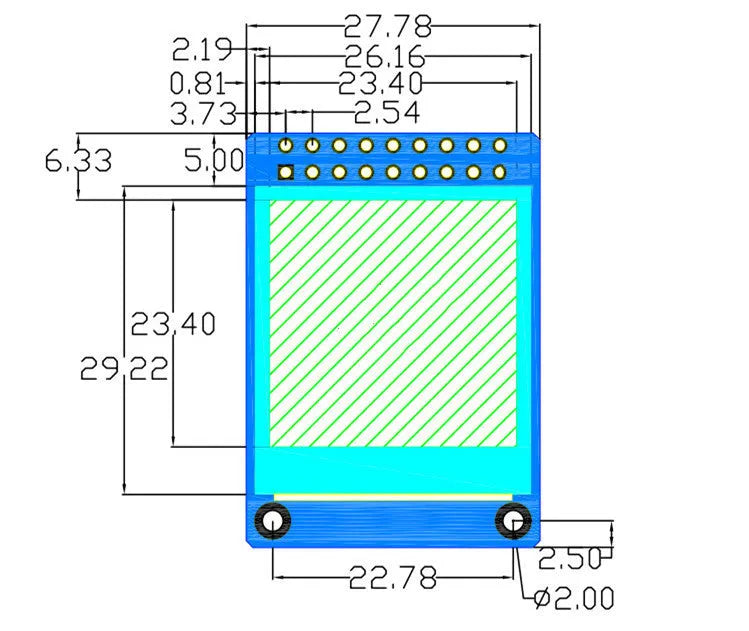

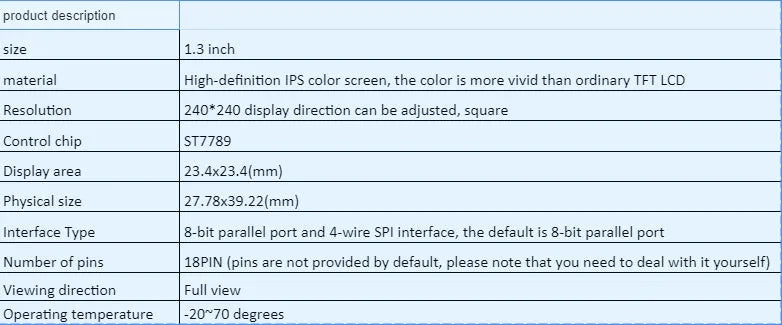

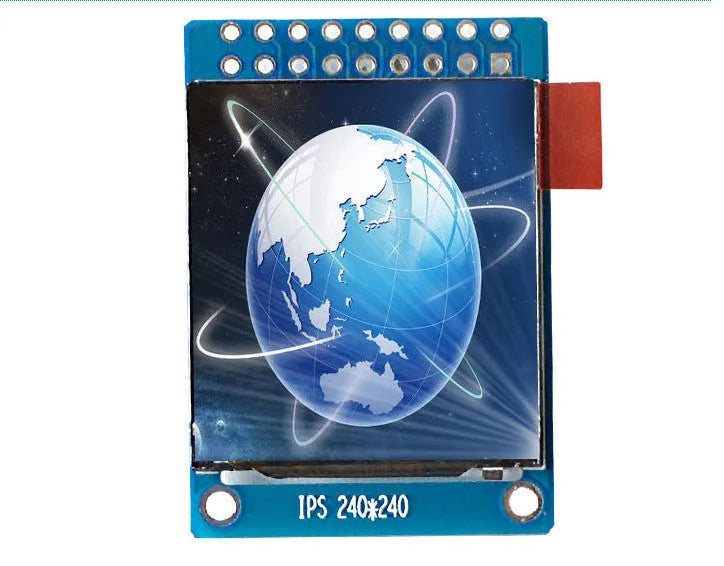

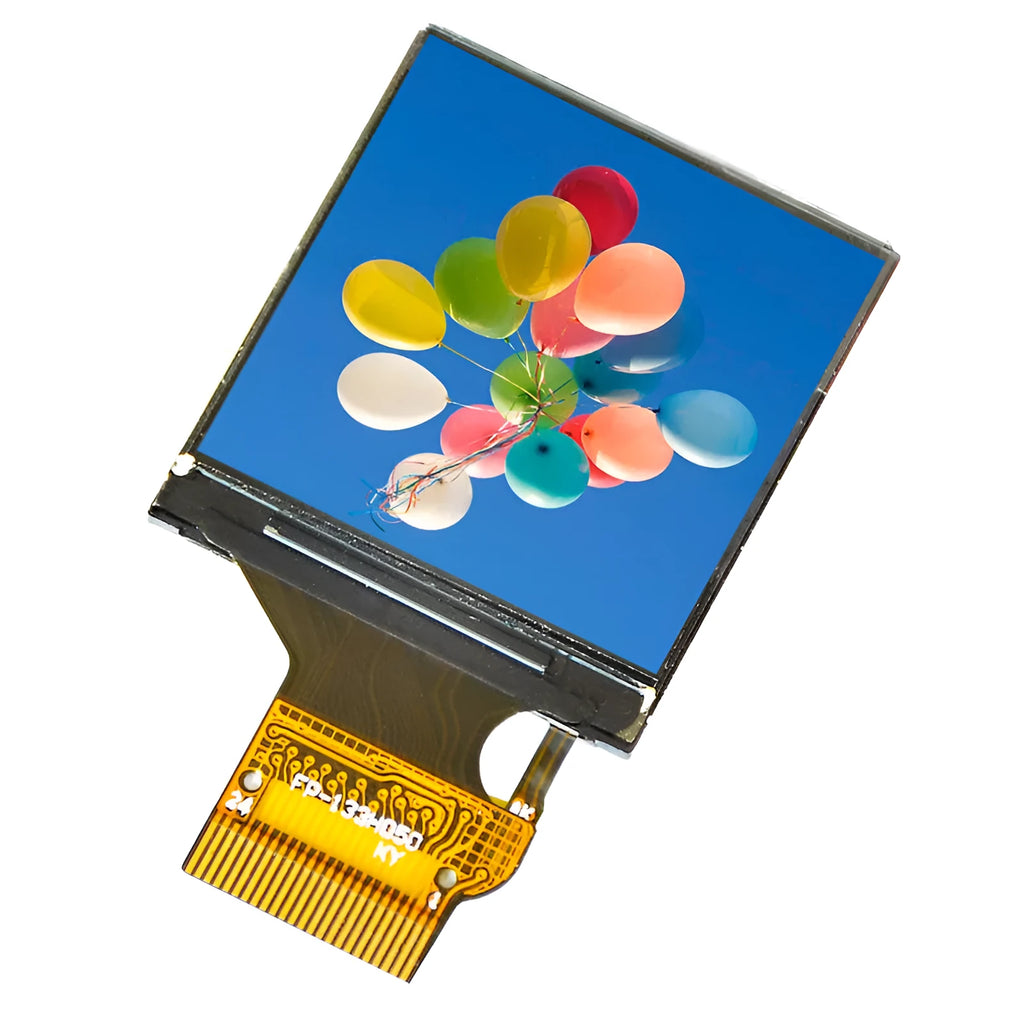

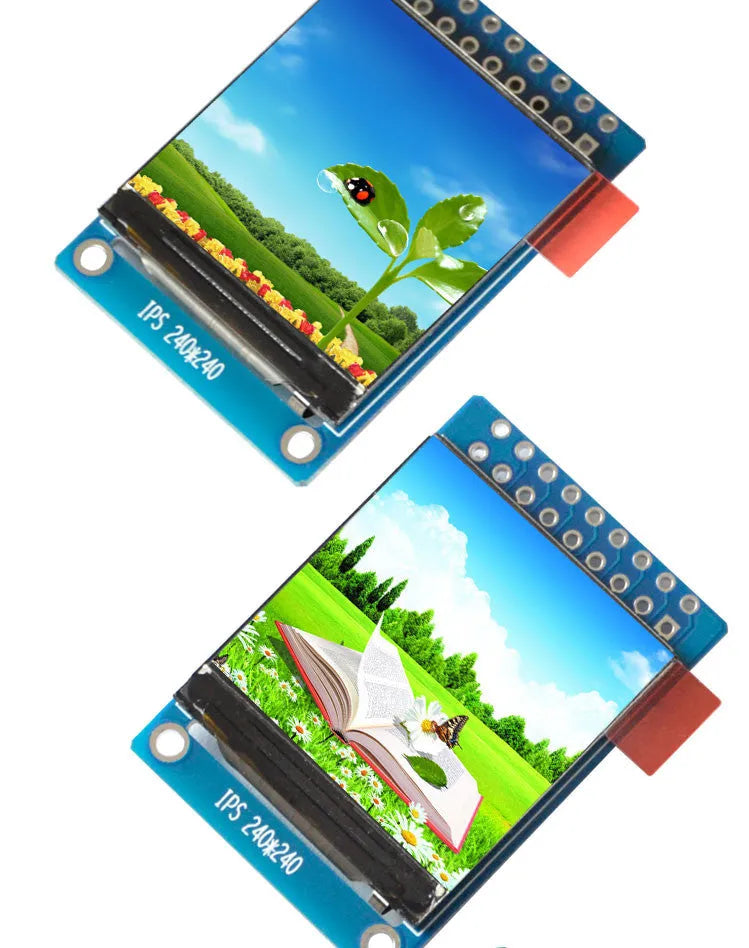

The core component is a high-definition IPS colour screen. This type of panel is known for offering wider viewing angles and better colour reproduction compared to traditional TN (Twisted Nematic) screens, contributing to the stated vivid colour output. The module is driven by an ST7789 control chip, a common integrated circuit responsible for managing the pixel data sent to the screen. The physical construction results in a module measuring 27.78mm by 39.22mm, which houses the 23.4mm by 23.4mm active display area.

Size and Practical Fit

The 1.3-inch diagonal screen size and 240x240 square resolution define its footprint and detail level. The viewable area of 23.4mm x 23.4mm provides a compact yet utilisable space for information. This specific size makes it suitable for projects where panel space is limited but a clear, colour display is required, such as in portable devices, custom instrumentation, or compact control panels. The square aspect ratio is particularly well-suited for symmetric interfaces or displaying data in a grid format.

Uses and Placement

This module's specifications lend it to both hobbyist and professional applications where a small, reliable colour display is needed.

Event or Professional Use

In professional or commercial settings, this display could be integrated into custom equipment dashboards, point-of-sale terminal status screens, or industrial sensor monitoring units. Its wide operating temperature range supports use in environments that are not climate-controlled. The ability to support full viewing direction means it can be mounted in various orientations without losing image quality, which is useful for equipment viewed from different angles.

Everyday Home Use

For DIY enthusiasts and makers, this display is a practical component for personal projects like custom smart home controllers, weather stations, retro gaming consoles, or robotics interfaces. The vivid IPS screen enhances the user experience in these applications. The dual interface support (8-bit parallel and SPI) provides flexibility, allowing it to be connected to a wide range of popular microcontrollers such as Arduino, Raspberry Pi Pico, or ESP32 boards, depending on the chosen communication method and sourced pins.

Benefits and Buying Value

The value of this display lies in its defined specifications, which offer a known set of capabilities for your electronic designs.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the display module requires minimal maintenance once integrated and operated within its specified parameters. Its durability is linked to adhering to the -20°C to 70°C operating range. The module can be reused across different projects if carefully desoldered, and its standard interfaces make it a versatile component to keep in an electronics toolkit for future prototypes or repairs that need a small colour screen.

Why Choose This Product

Choosing this product provides you with a concrete set of features: a 1.3-inch IPS screen for improved colour, a specific 240x240 resolution, and flexible connectivity via parallel or SPI. It is a self-contained module with a known driver chip (ST7789), simplifying software integration compared to sourcing raw panels. The key practical consideration is that it is supplied without pins, giving you the freedom to select the appropriate pin headers or cables for your specific mounting and connection needs, which is a common practice in the electronics component market.
