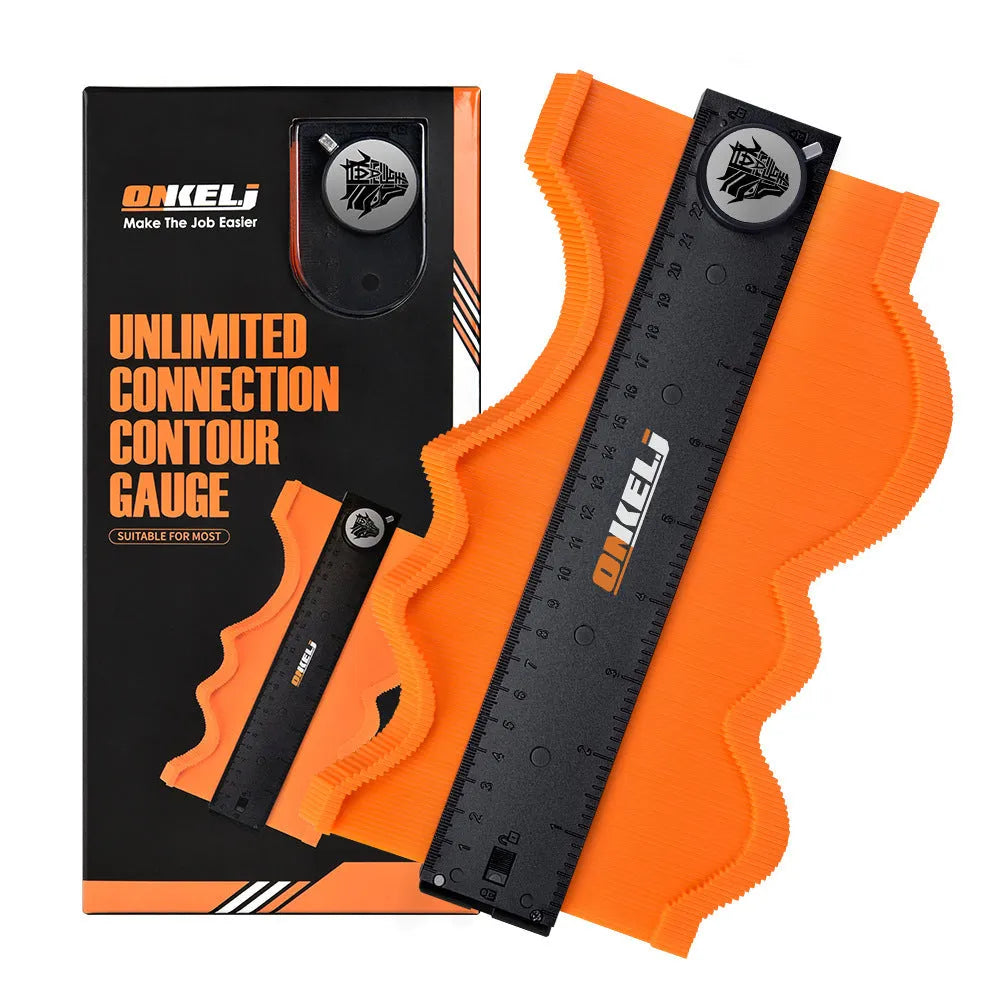

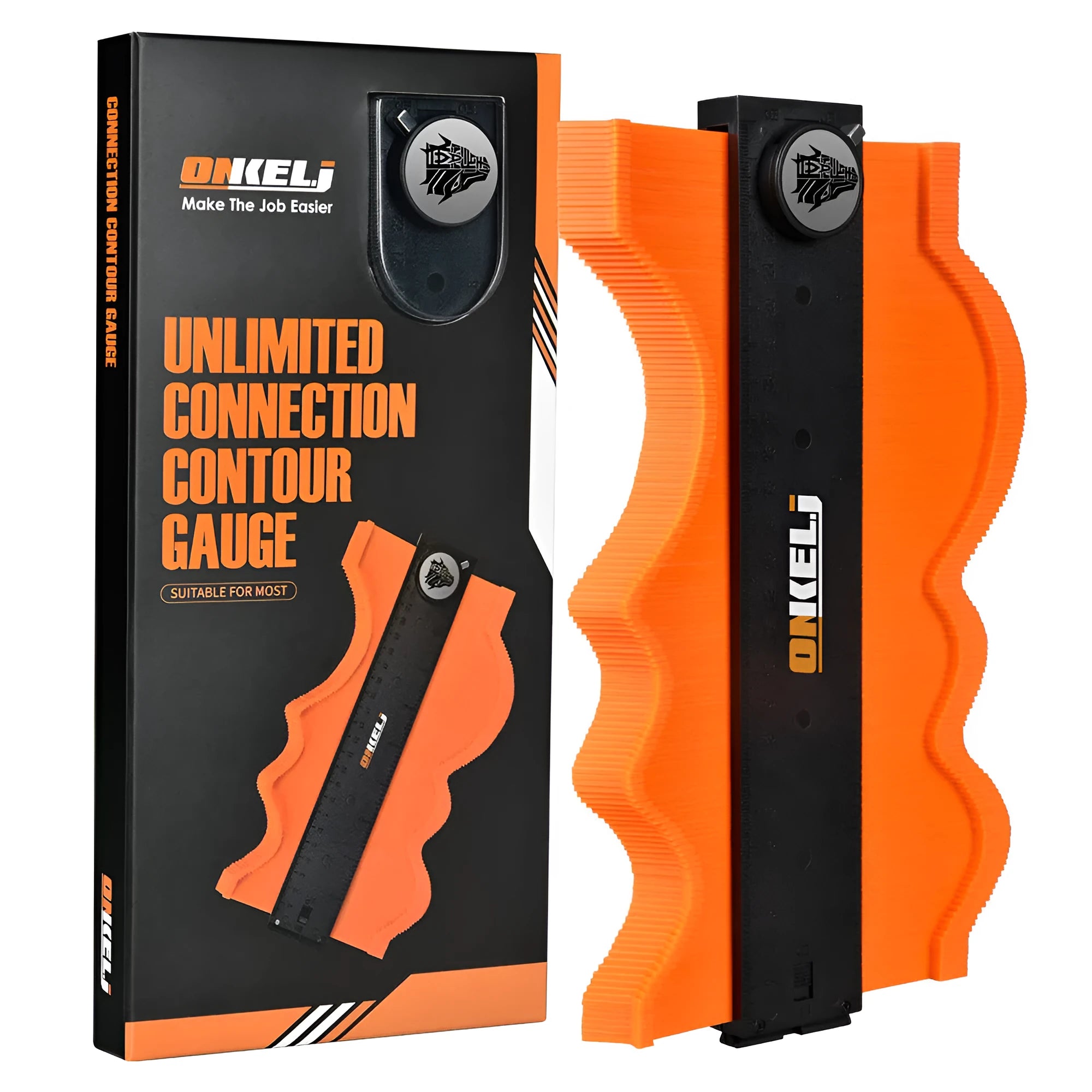

10-inch contour gauge with infinite stitching and lock belt positioning for accurate radius transfer

This contour gauge profiling tool addresses the specific challenge of transferring irregular shapes and complex radii between surfaces, particularly valuable in fitting tasks where materials must conform to existing architectural features. With 265mm of measurement length and 1mm precision, it captures detailed profiles of skirting boards, tiles, flooring edges, and other obstructions that require precise fitting. The infinite stitching capability allows continuous measurement without needing to reset the tool, making it efficient for longer or repeating patterns. Professionals and DIY enthusiasts working with laminate flooring, wall tiles, countertop installations, and trim work will find this tool reduces guesswork and improves accuracy in material cutting and placement.

Features and Construction

Built to provide reliable performance in workshop and on-site conditions, this contour gauge combines functional design with practical materials suited to measurement transfer tasks. The construction focuses on maintaining accuracy while withstanding regular use in various working environments.

Material and Build

The gauge frame utilises ABS plastic, a material selected for its structural rigidity and resistance to impact deformation that could affect measurement accuracy. Stainless steel pins offer corrosion resistance and consistent sliding performance, maintaining their position when locked without bending under pressure. This material combination ensures the gauge retains its precision over repeated use, with the stainless steel components resisting wear from friction against various surface materials during profiling operations.

Size and Practical Fit

With dimensions of 265mm length by 130mm width by 27mm thickness, the gauge provides substantial contact area for stable measurement against surfaces while remaining manageable for single-handed operation. The 10-inch measurement capacity covers common radius requirements in domestic and commercial fitting work, from architrave profiles to tile edge contours. The thickness allows comfortable grip during profiling operations, while the width accommodates sufficient pin density for detailed contour capture across the working length.

Uses and Placement

This contour gauge finds application in numerous scenarios where materials must be cut or shaped to fit against existing structures with irregular profiles. Its measurement transfer capability streamlines processes that traditionally required trial-and-error fitting or complex measuring techniques.

Event or Professional Use

For professional installers working with flooring, tiling, or joinery, the gauge provides time-saving accuracy when fitting materials around pipes, irregular wall surfaces, or architectural features. The lock belt positioning allows captured profiles to be transferred to multiple workpieces without recalibration, improving consistency in production environments. Construction and renovation projects benefit from the 1mm precision when creating templates for custom trim work or verifying existing profiles for replacement components.

Everyday Home Use

DIY projects involving laminate or vinyl flooring installation are simplified by accurately transferring skirting board profiles to ensure clean edge fits. Tile work around bathroom fixtures or kitchen backsplashes becomes more manageable with precise radius measurement for cutting. Home improvement tasks like fitting shelving against textured walls or creating custom trim around fireplace surrounds are accomplished with greater confidence using the gauge's profile transfer capability.

Benefits and Buying Value

The practical advantages of this contour gauge stem from its specific design features that address common measurement challenges in fitting and installation work. Its value lies in reducing material waste and improving fit quality across various applications.

Reuse and Low Maintenance

The stainless steel pin construction requires minimal maintenance beyond occasional cleaning to remove material residue that could affect sliding performance. No specialised lubricants or adjustments are needed for continued operation, making the gauge ready for use when needed. The ABS plastic frame resists cracking or deformation under normal storage conditions, maintaining tool integrity between projects over extended periods.

Why Choose This Product

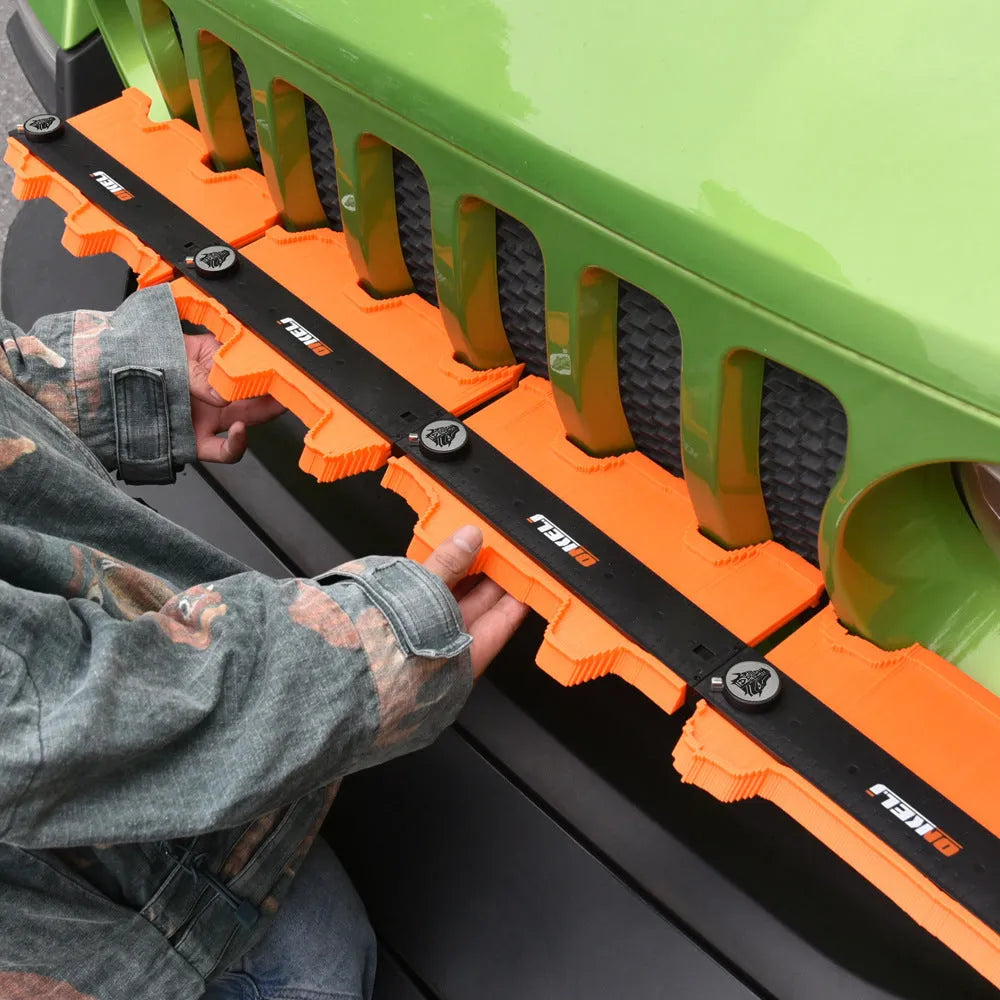

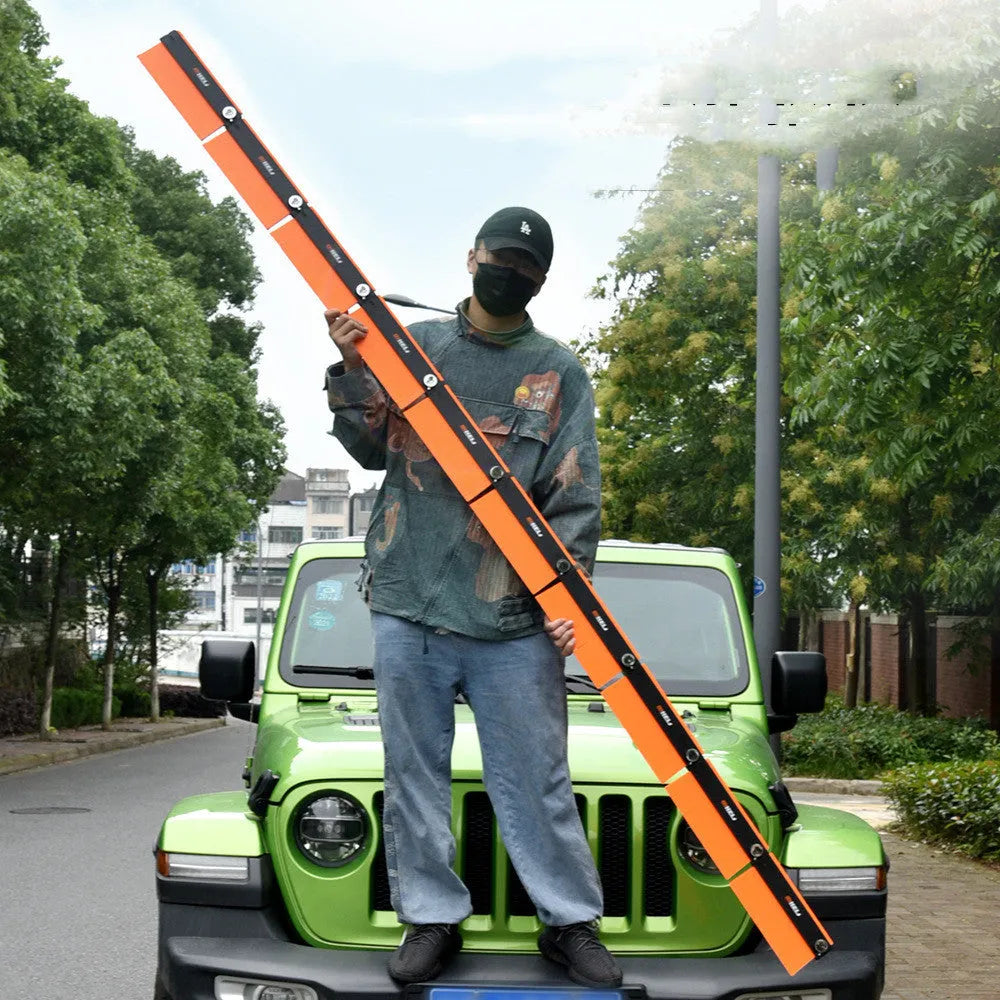

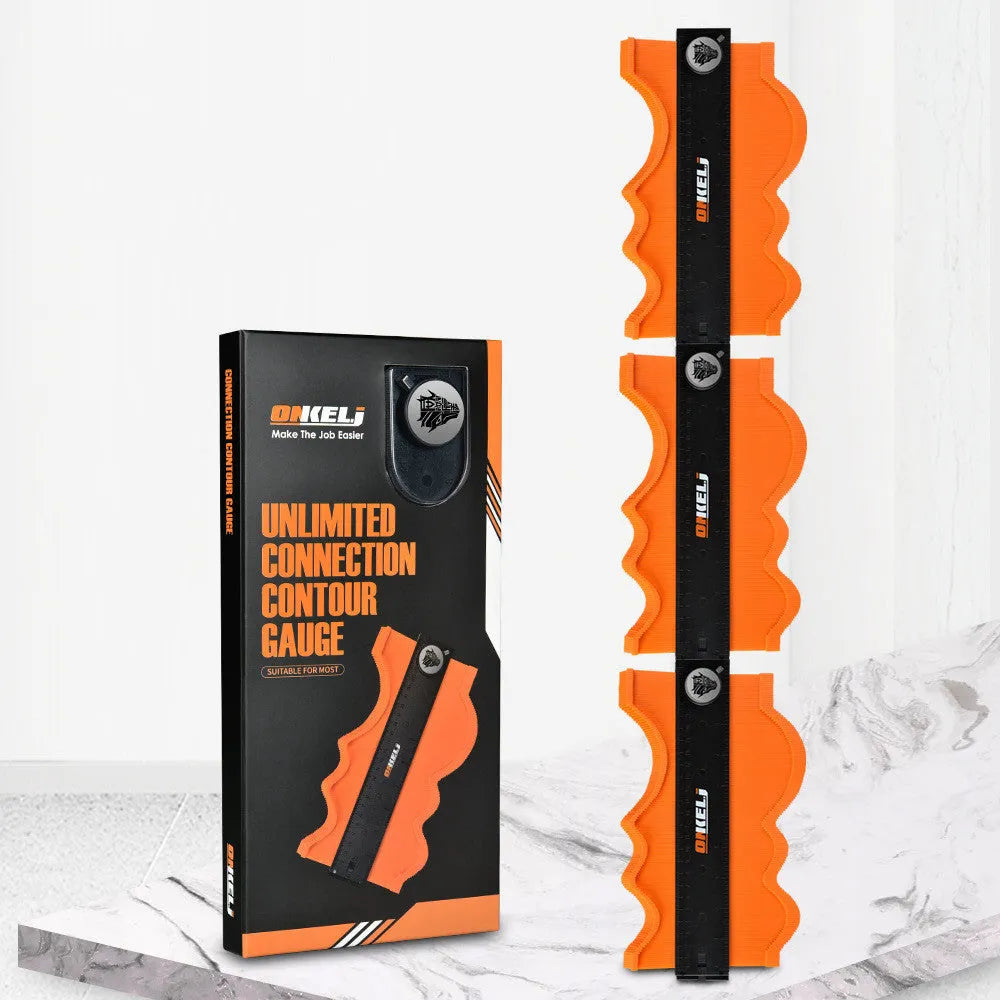

This contour gauge offers specific advantages for users requiring reliable profile transfer capability with secure positioning between capture and marking stages. The infinite stitching feature differentiates it from fixed-length gauges by allowing continuous measurement without resetting, particularly valuable for longer or complex profiles. The lock belt system provides confidence that captured contours remain unchanged during the transfer process, reducing errors in template creation. With 1mm precision across its working length, it delivers the accuracy needed for professional results in various material fitting applications.
