Fuel injection flow meter and nozzle detection tool for automotive oil return measurement

This fuel injection flow meter serves as a practical diagnostic instrument for automotive fuel systems, specifically designed to measure oil return as an indicator of injector and pump performance. The tool provides mechanics and enthusiasts with a hands-on approach to fault detection without relying solely on electronic interfaces. Constructed from brass and plastic materials, it balances durability in fuel-exposed environments with manageable handling weight. With dimensions of 37.5cm long, 27.5cm wide, and 7.5cm high, this instrument fits conveniently on a workshop bench or in a toolbox. The complete set includes all components needed for basic fuel system assessment, offering a straightforward method for identifying potential issues in fuel delivery pathways.

Features and Construction

The fuel injection detection tool combines material selection and dimensional design to create a functional diagnostic instrument. This section examines how its build supports practical automotive testing applications.

Material and Build

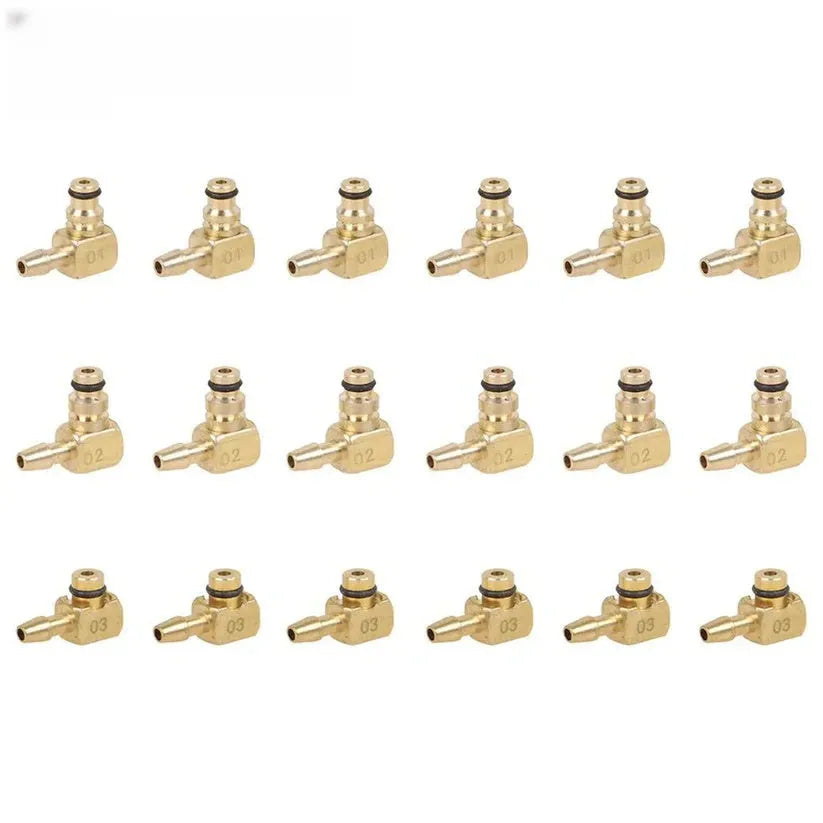

Brass components provide the structural elements likely to encounter fuel during testing, offering material properties that resist corrosion in petroleum-based environments. The plastic elements contribute to reduced overall instrument weight, making extended handling during diagnostics more manageable. This material combination creates a tool that balances exposure resistance with user comfort, without claiming specialised performance characteristics beyond the stated material properties. The construction focuses on providing a functional interface for connecting to fuel injection systems according to standard measurement procedures.

Size and Practical Fit

With measurements of 37.5cm in length, 27.5cm in width, and 7.5cm in height, this oil return measuring instrument occupies a practical footprint on a workshop surface. These dimensions allow it to be positioned near engine bays during testing while remaining stable during measurement procedures. The size accommodates the necessary internal components for flow measurement without becoming unwieldy for single-person operation. This dimensional profile supports its function as a portable diagnostic tool that can be transported between vehicles or stored conveniently when not in use.

Uses and Placement

As a car fault detector, this instrument addresses specific diagnostic scenarios in automotive maintenance. This section outlines its practical applications in both professional and enthusiast contexts.

Event or Professional Use

In professional workshop environments, this fuel injection flow meter provides a mechanical verification method alongside electronic diagnostic systems. It can be used to confirm suspected fuel delivery issues indicated by onboard computer error codes or performance symptoms. The oil return measurement function offers quantitative data about injector performance that supplements visual inspections and pressure tests. For racing teams or performance tuners, it provides a straightforward way to compare fuel delivery across multiple cylinders or between different injector configurations during setup and troubleshooting procedures.

Everyday Home Use

For automotive enthusiasts maintaining personal vehicles, this detection tool offers a hands-on approach to understanding fuel system health. It can help diagnose rough running conditions, poor fuel economy, or starting issues that might relate to injector performance. The mechanical nature of the measurement process makes it accessible to those familiar with basic engine components without requiring specialised electronic interface knowledge. When used according to standard procedures, it provides insight into whether fuel system issues warrant professional attention or further investigation.

Benefits and Buying Value

This oil return measuring instrument provides specific advantages in automotive diagnostics through its design approach and functional focus. This section examines its practical value in maintenance contexts.

Reuse and Low Maintenance

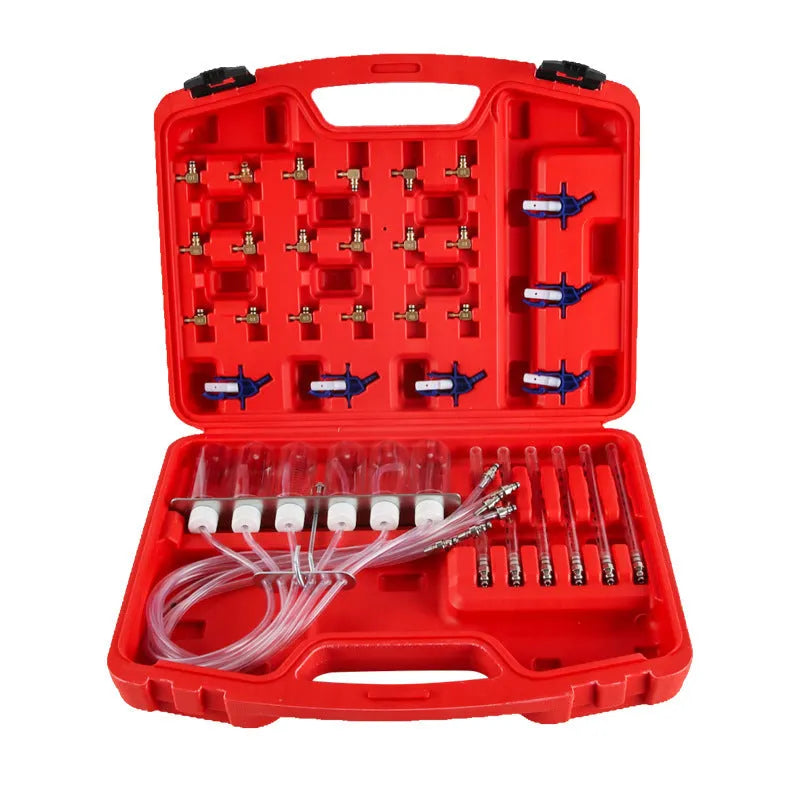

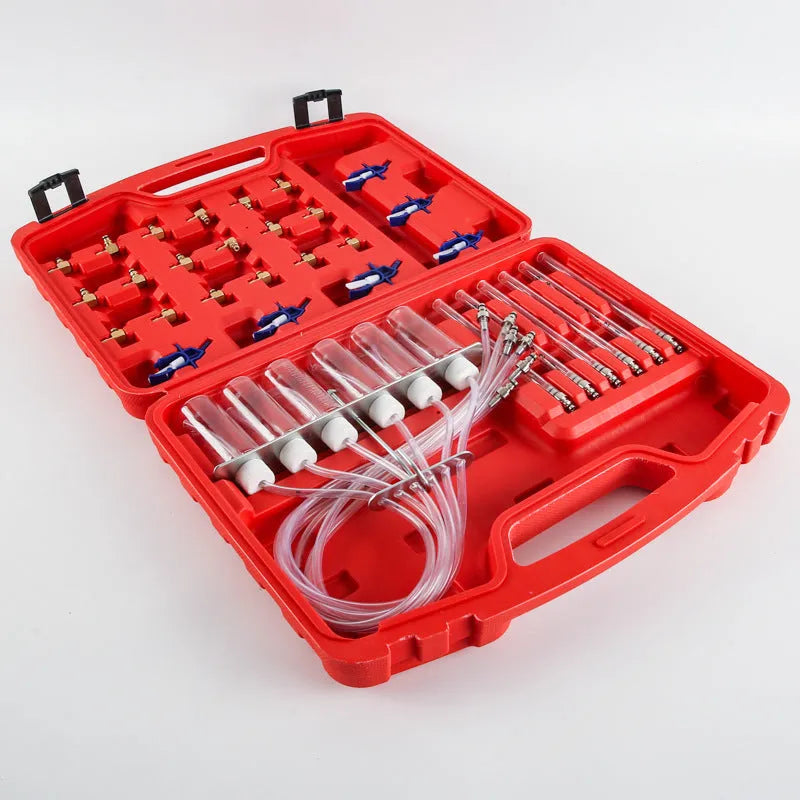

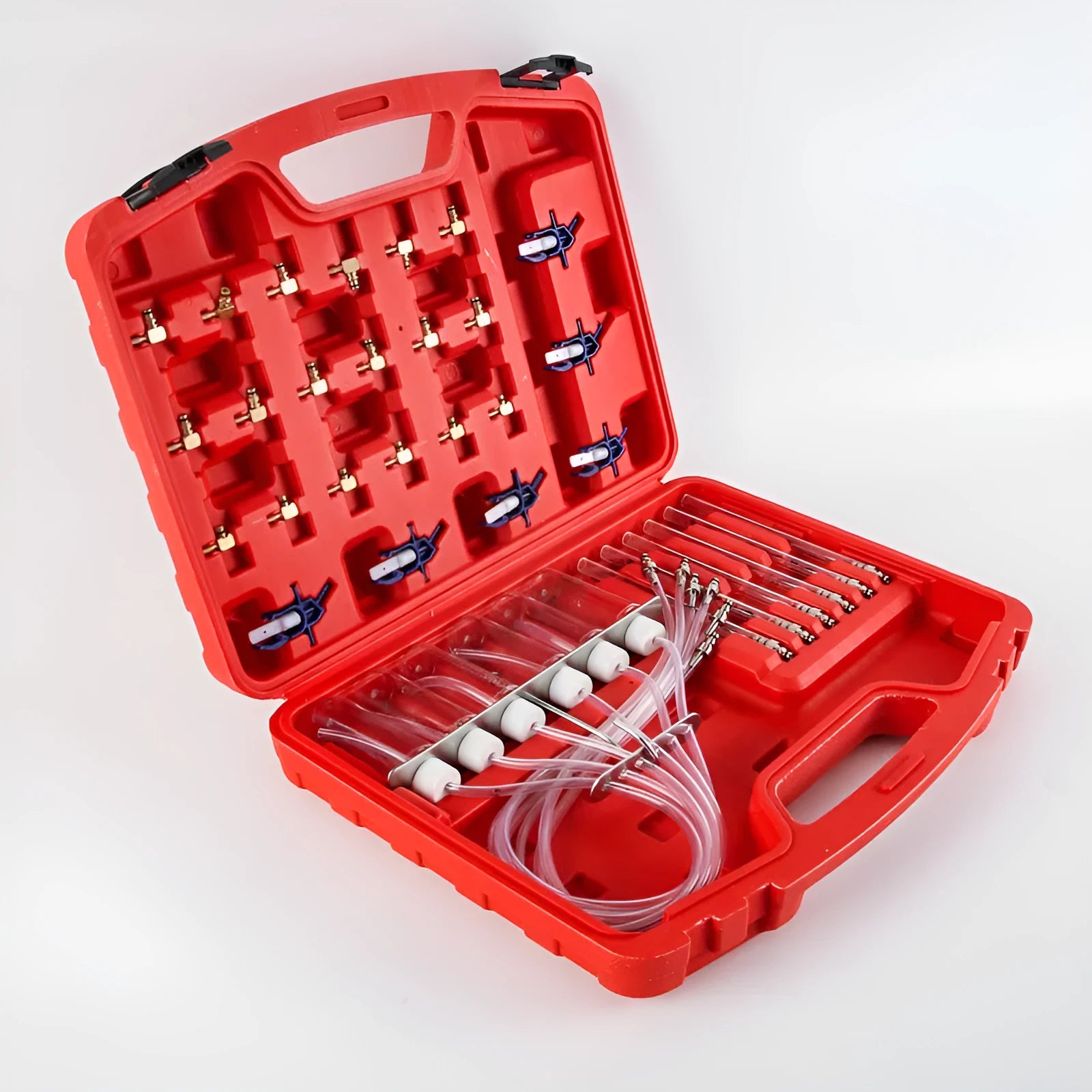

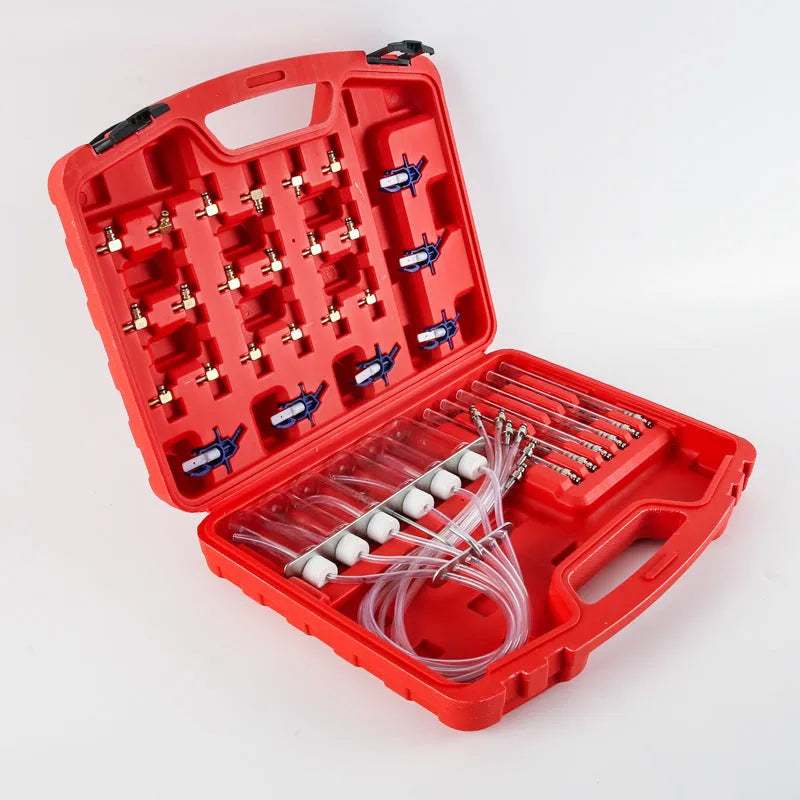

The brass and plastic construction supports repeated use across multiple diagnostic sessions with appropriate cleaning between applications. The material properties suggest straightforward maintenance through standard cleaning procedures suitable for fuel-exposed tools. As a complete set supplied with all necessary components, it avoids the need for additional purchases to begin basic fuel system testing. This reusability makes it suitable for workshops or enthusiasts who anticipate multiple uses across different vehicles or over extended time periods.

Why Choose This Product

This fuel injection flow meter offers a focused solution for those seeking mechanical verification of fuel system performance. Its brass components provide appropriate material characteristics for fuel-exposed diagnostics, while plastic elements keep the instrument manageable during use. The complete set configuration means users have everything required for oil return measurement without sourcing additional parts. For mechanics wanting to complement electronic diagnostics with physical measurement, or enthusiasts preferring hands-on troubleshooting approaches, this tool provides a specific functional option within automotive maintenance toolkits.
