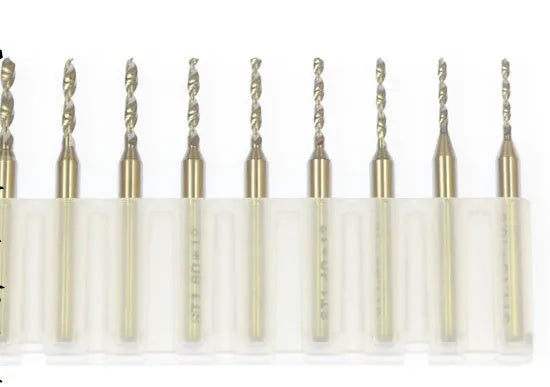

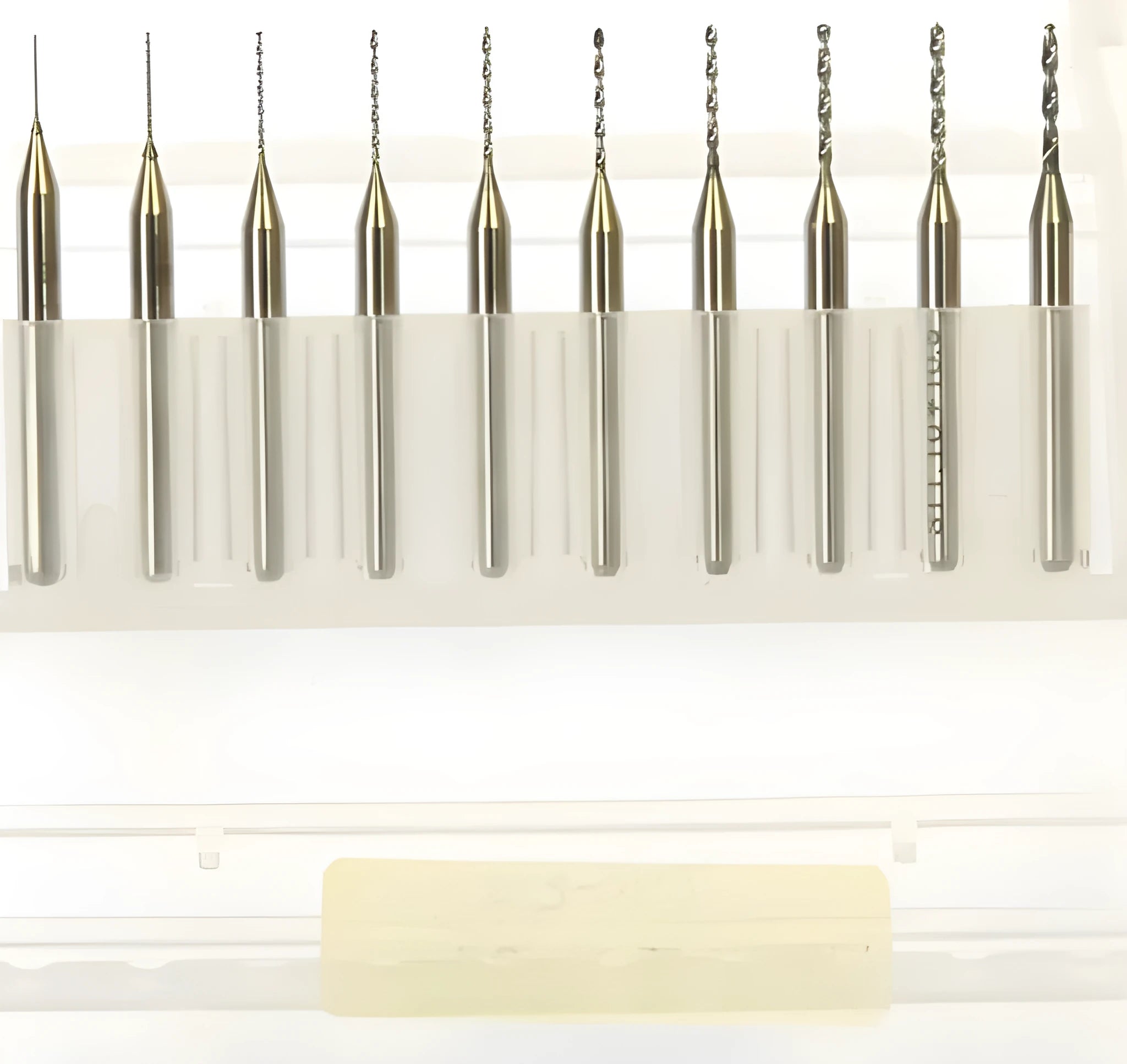

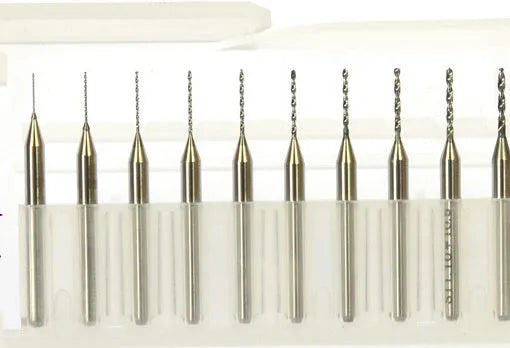

Imported Tungsten Carbide Micro Engraving Bits for Precision Circuit Board and SMT Machining

This selection of micro engraving bits provides a precise tooling solution for industries where minute detail and material integrity are paramount. Manufactured from imported tungsten carbide, often referred to as tungsten steel, these bits are formulated for high hardness and strength. They are engineered to withstand the demands of bending and fracture resistance during operation, aiming to provide greater wear resistance for extended use in detailed machining tasks. The primary applications span precision-focused sectors including circuit board fabrication, electronics assembly, SMT (Surface Mount Technology) processing, die work, hardware machining, and communications equipment manufacturing. The availability of a comprehensive size range allows professionals to select the exact tool diameter required for their specific micro-engraving or milling operation.

Features and Construction

This product line is defined by its material composition and the practical scope of its size specifications. The construction is focused on delivering a tool that can perform reliably under the stresses of high-precision industrial work.

Material and Build

The core construction material is imported tungsten carbide, a cemented carbide alloy known commercially as tungsten steel. This material choice is directly linked to several stated performance characteristics: high hardness, high wear resistance, high strength, and resistance to bending and fracture. In practical terms, this means the bits are designed to maintain their cutting edge longer than softer materials when machining hard or abrasive workpieces and to resist snapping or deforming under the lateral loads encountered in detailed engraving work.

Size and Practical Fit

The product offers a notably complete specification range, with individual bit diameters starting at an ultra-fine 0.10mm and progressing through to 2.00mm. This covers over thirty distinct size points, including increments like 0.15mm, 0.25mm, 0.35mm, and so on up to 2.00mm. For users requiring multiple identical bits for a job or as spares, certain sizes are also offered in specific ten-piece sets, explicitly mentioned for diameters of 0.10mm, 0.30mm, and 1.1mm. This range aims to cater to a wide variety of micro-machining tolerances and project requirements.

Uses and Placement

The application scope for these bits is clearly defined by the source text, targeting several key industrial and manufacturing sectors where precision is non-negotiable.

Event or Professional Use

In professional and industrial settings, these micro engraving bits are applicable to circuit board (PCB) manufacturing for trace routing or drilling, electronics assembly for component modification, and SMT (Surface Mount Technology) line adjustments or repairs. Their use extends to die and mould making for intricate details and to general hardware processing where fine features are required. The communications industry, for machining small, precise components, is also a stated application area.

Everyday Home Use

While the specifications and stated industrial applications indicate a tool designed for professional workshop environments, a hobbyist or advanced modeller with compatible precision machinery (such as a micro mill or engraver) might employ these bits for detailed work on models, jewellery making, or intricate craft projects requiring very fine detail. However, the primary design intent remains focused on the industrial applications listed.

Benefits and Buying Value

The value proposition of these bits centres on material performance and the convenience of a comprehensive size selection, aiming to reduce downtime and improve machining consistency.

Reuse and Low Maintenance

The high wear resistance attributed to the tungsten carbide material suggests a potential for longer tool life between sharpenings or replacements compared to tools made from less hard materials. This can translate to reduced consumable costs over time and less frequent machine stoppages for tool changes. The strength and fracture resistance also aim to lower the risk of in-job tool failure, which can damage workpieces.

Why Choose This Product

This product is chosen for its clear alignment with precision industrial needs. The combination of imported tungsten carbide for durability and the extensive range of micro-diameters provides a focused solution. It allows technicians and engineers to source a specific tool size—from the very smallest 0.10mm up to 2.00mm—from a single product line that is built for the stated rigours of circuit board, electronics, and die work. The option for ten-piece sets on key sizes adds practical value for high-volume or critical production runs where tool consistency is vital.
