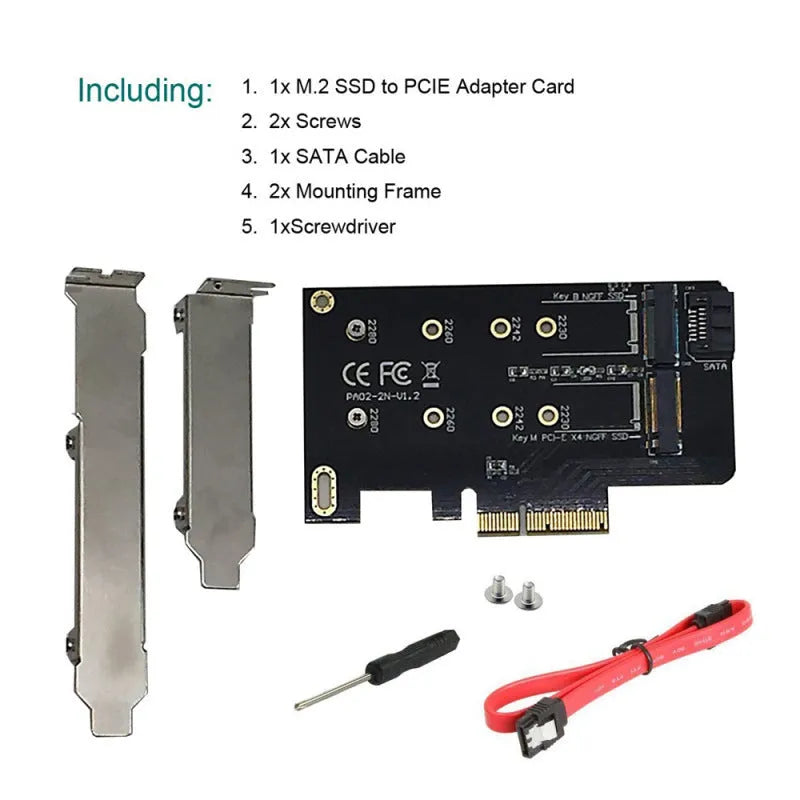

M.2 SSD Adapter Card with Dual B Key and M Key Slots for PCIe X4

This M.2 SSD adapter card expansion card enables you to add high-speed SATA Gen 3.0 storage to a desktop computer that has a spare PCIe X4 slot. It provides two separate M.2 connectors—one B Key and one M Key—so you can install compatible NGFF solid state drives of varying sizes. The card supports transfer rates up to 6Gb/s and requires no driver software, making installation straightforward. It is built to the M.2 specification revision 1.0 and uses a PCI Express bus type PCIe X4 rev2.0 interface, ensuring a reliable connection for everyday computing and storage expansion.

Features and Construction

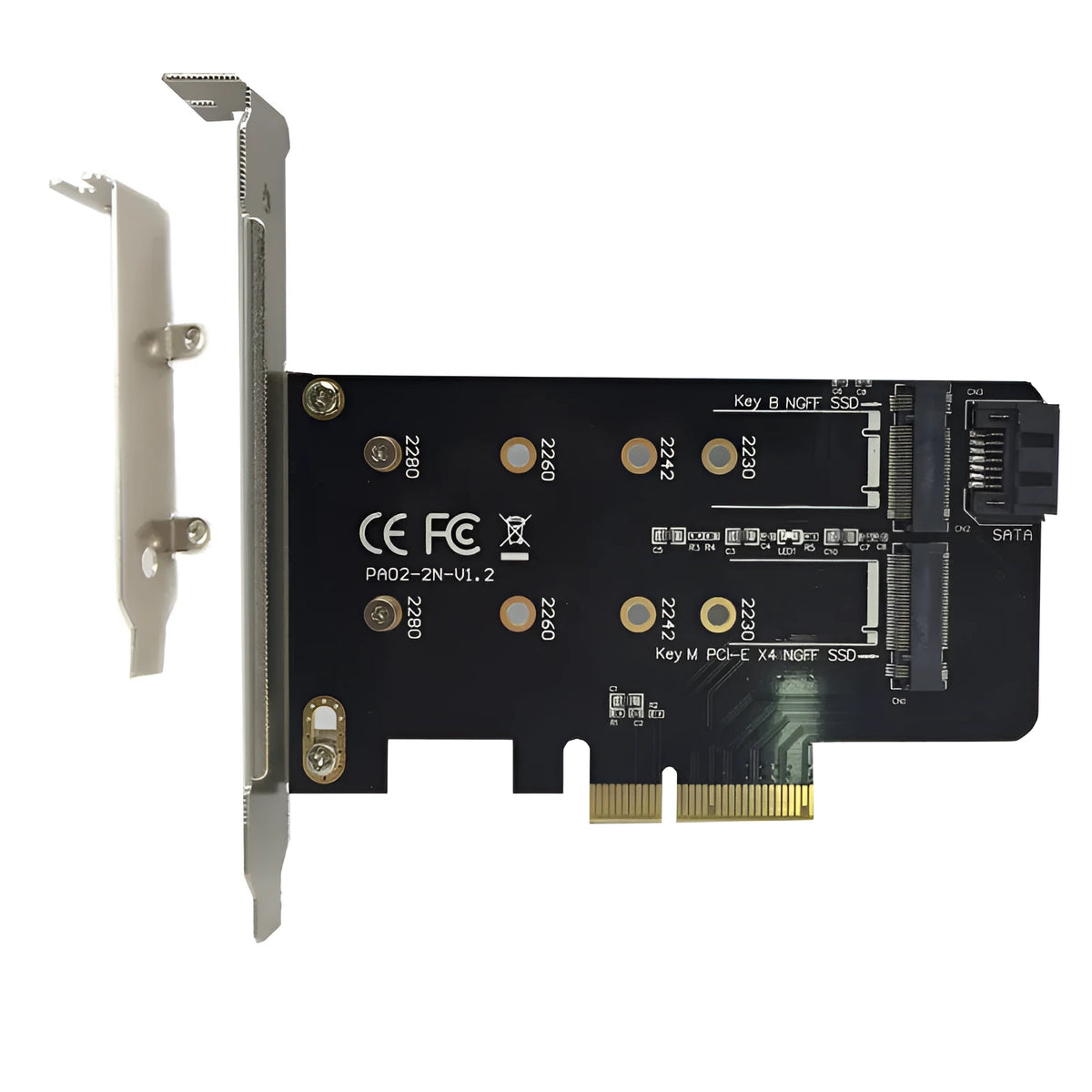

The adapter card is designed around a black PCB and standard PCIe X4 form factor. It complies with both the M.2 specification revision 1.0 and Serial ATA rev3.2 standards.

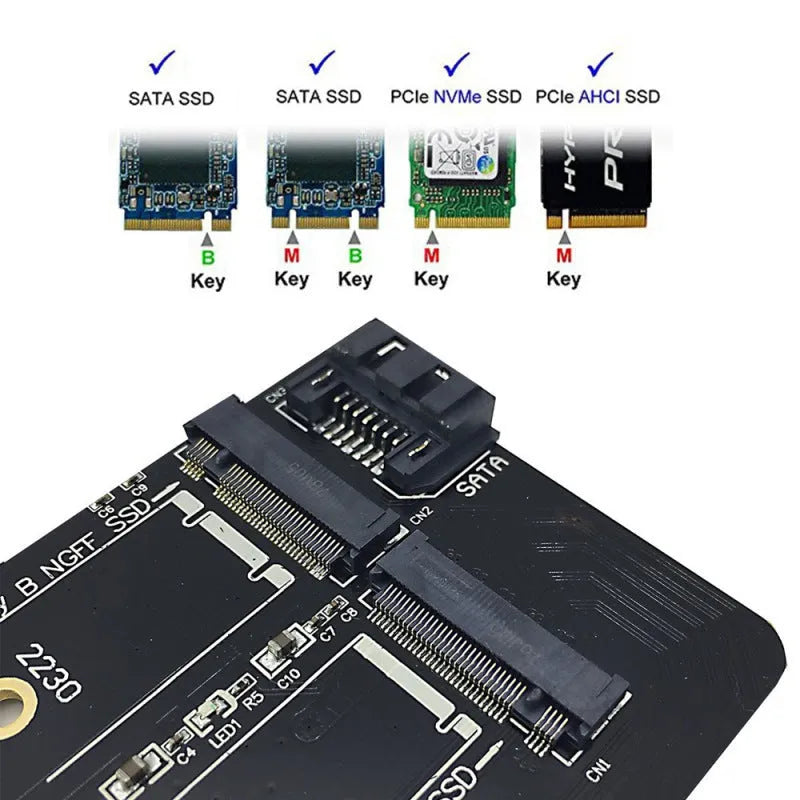

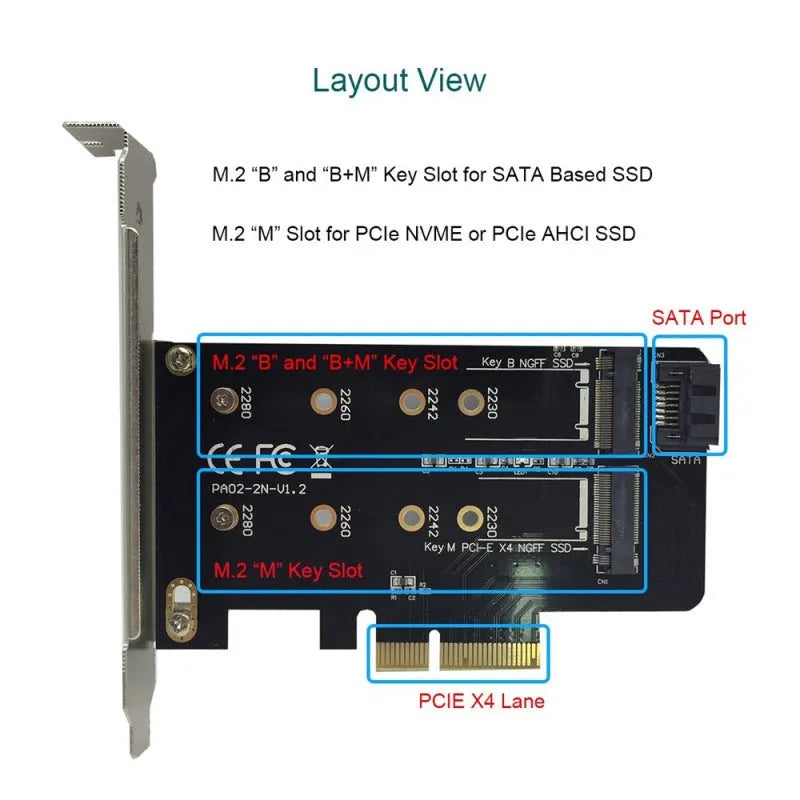

Dual M.2 Connectors

The card offers one M.2 B Key and one M.2 M Key slot. This allows you to use a variety of NGFF SSDs without needing separate adapters, and supports card sizes 2230, 2242, 2260, and 2280.

PCIe X4 Interface

The card uses a PCI Express X4 rev2.0 bus, which provides sufficient bandwidth for SATA Gen 3.0 speeds. The NGFF SSD adapter does not affect the computer motherboard's HOST terminal speed, keeping performance consistent.

SATA Gen 3.0 Support

Transfer rates of up to 6Gb/s are supported via the Serial ATA rev3.2 interface. This ensures responsive data transfers for boot drives, game libraries, or large file storage.

Uses and Placement

This adapter is suited for desktop systems where built-in M.2 slots are unavailable or already occupied. It is a practical solution for expanding internal storage capacity.

Desktop Storage Expansion

Adding an M.2 SSD to a legacy desktop motherboard is straightforward. The card fits into any PCIe X4 or larger slot and does not require additional power cables or configuration.

Home or Office Computing

For general productivity, file storage, or media libraries, the adapter provides a fast interface without the need for external drives. It maintains the SATA Gen 3.0 performance of the installed SSD.

DIY PC Builds

Enthusiasts building or upgrading a system can use this card to add extra M.2 storage while keeping the motherboard choice flexible. The black PCB blends into most builds.

Benefits and Buying Value

The card offers a simple way to reuse M.2 SSDs from old laptops or upgrade a system with new drives. Its no-driver design reduces setup time.

Plug-and-Play Installation

Because no driver software is required, the card is recognised by most operating systems immediately. This simplifies the upgrade process for users with basic computer skills.

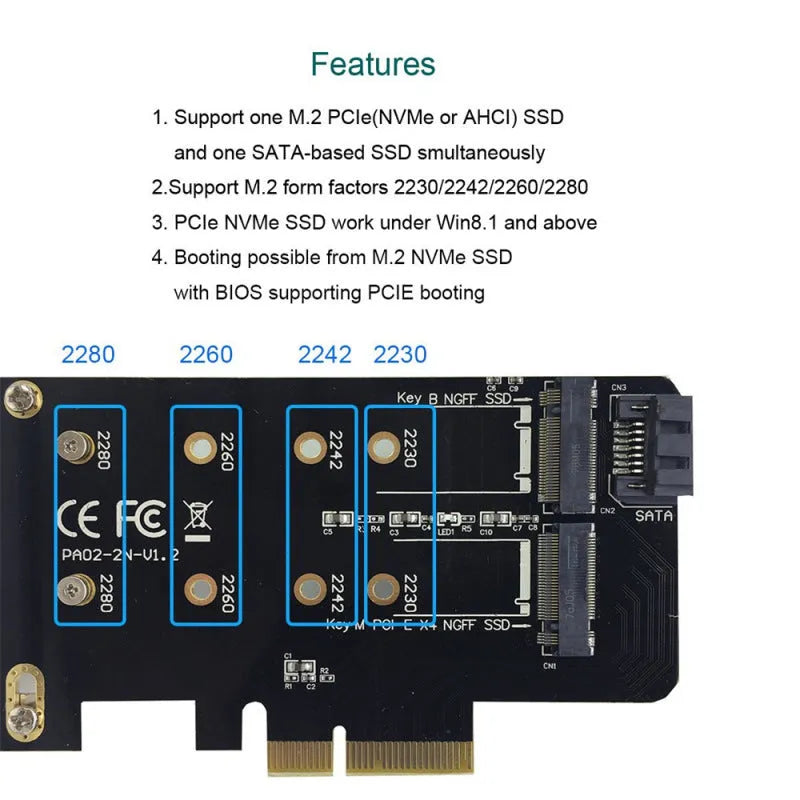

Support for Multiple SSD Sizes

The ability to fit 2230, 2242, 2260, and 2280 modules makes the adapter versatile for various M.2 NGFF SSDs. One card can handle drives from compact upgrades to full-length units.

Practical Storage Boost

By adding two M.2 slots via a single PCIe slot, the card provides a cost-effective way to increase internal storage capacity without replacing the motherboard. It maintains the SATA Gen 3.0 performance of your chosen drives.
