UTi Series Handheld Infrared Thermal Imager with 320x240 Display and IP65 Rating

The UTi series handheld infrared thermal imager is a compact diagnostic instrument designed for capturing and analysing temperature data without physical contact. Measuring 236mm by 75.5mm by 86mm, it fits comfortably in the hand for use in various inspection, maintenance, and monitoring scenarios. Its core function is to visualise heat distribution through a thermal image displayed on a built-in 2.8-inch screen, supporting a broad measurement spectrum from -10 degrees Celsius to 400 degrees Celsius. The device comes ready to use, including an 8GB storage card and a USB cable for charging and data transfer, making it a practical tool for professionals and technicians needing immediate thermal diagnostics.

Features and Construction

This thermal imager combines specific sensor capabilities with a ruggedised design intended for on-site use. Its construction is centred around delivering measurable thermal data and withstanding the occasional knocks of fieldwork.

Material and Build

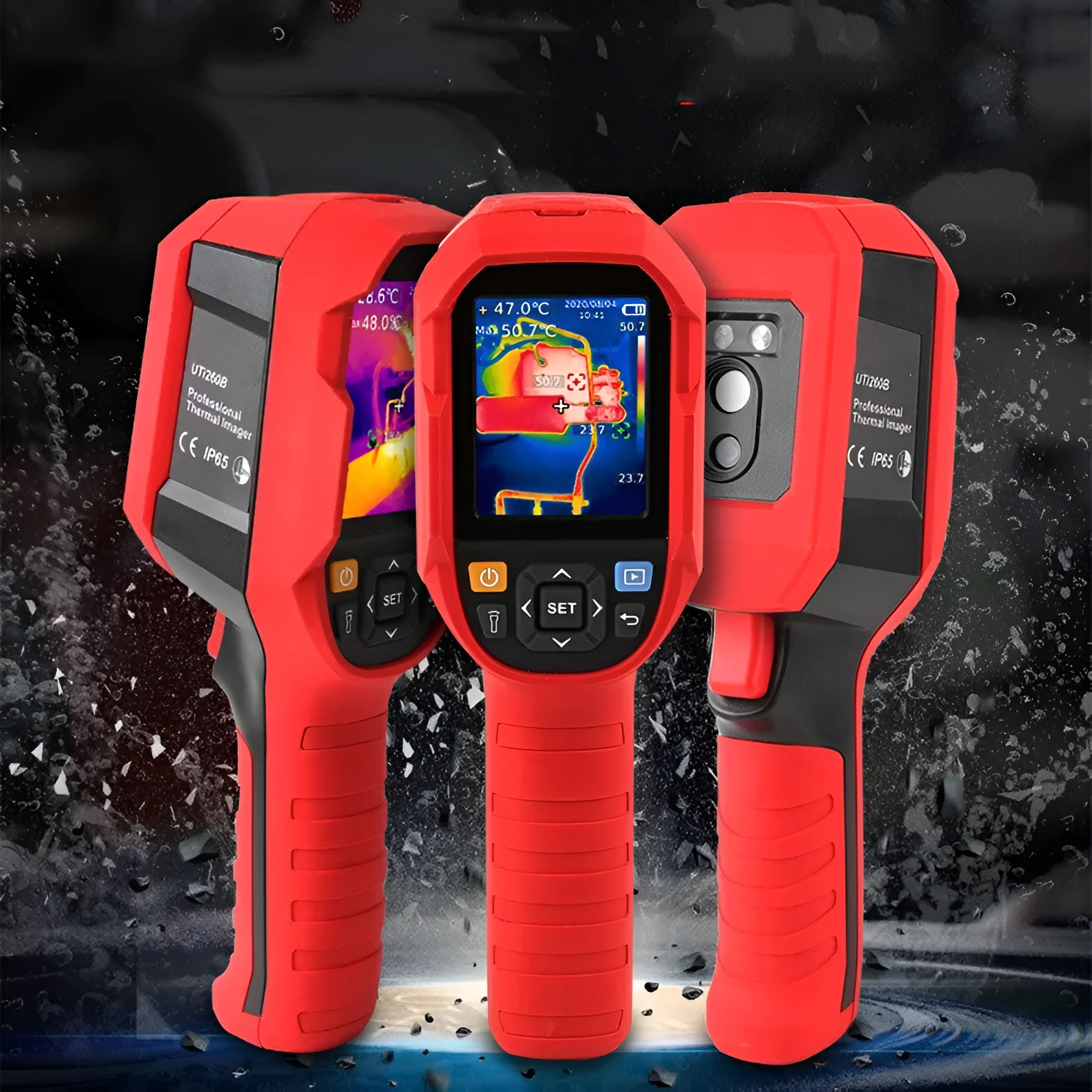

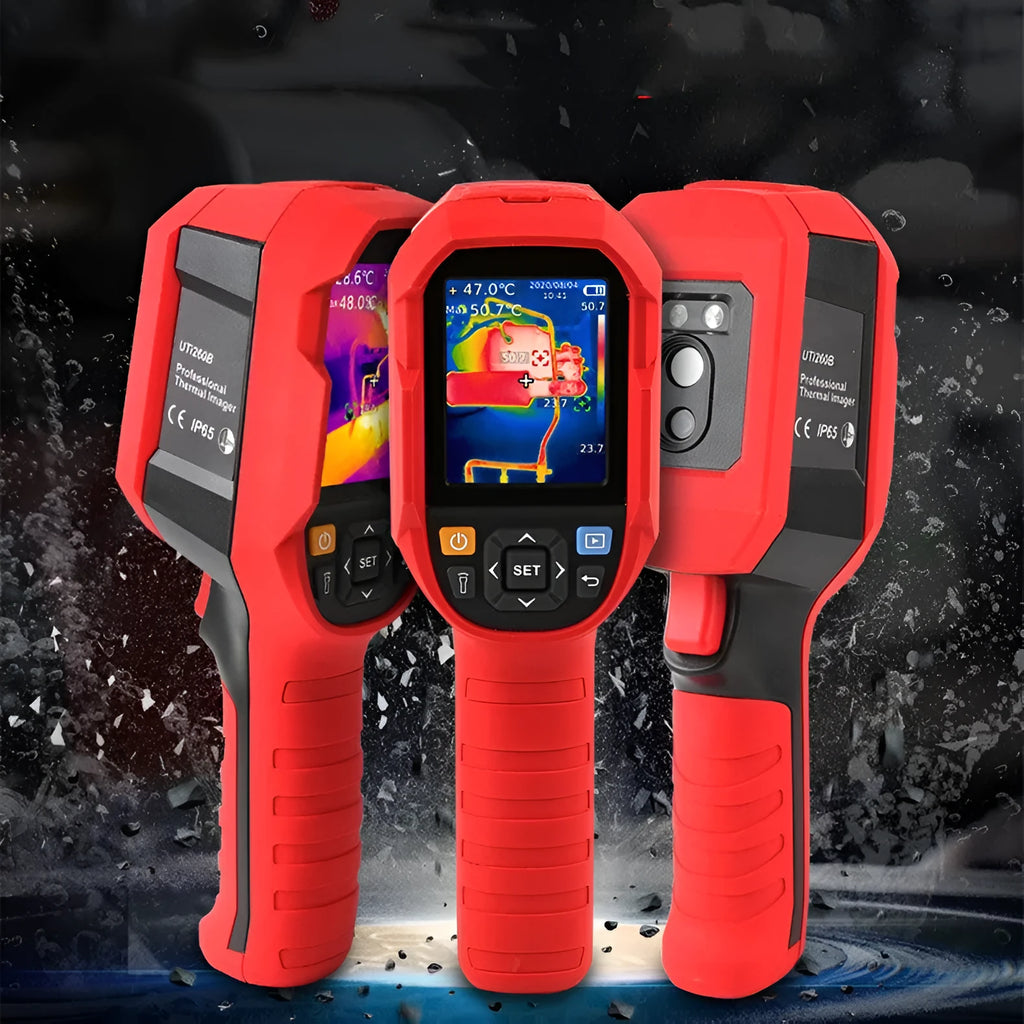

The external housing is engineered to provide an IP65 ingress protection rating. This rating indicates a defined level of resistance to dust ingress and low-pressure water jets from any direction, which can be relevant for use in environments like industrial plants or outdoors. Furthermore, the unit's construction has been tested to survive accidental drops from a height of up to 2 metres, adding a layer of practical durability for toolkits and service bags.

Size and Practical Fit

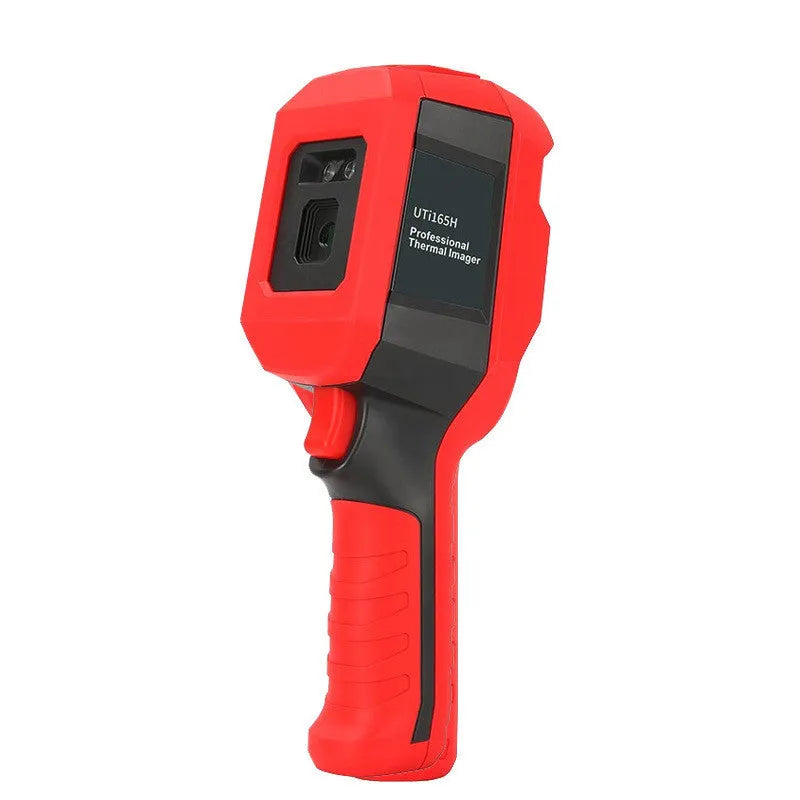

With dimensions of 236mm in length, 75.5mm in width, and 86mm in depth, the imager maintains a portable form factor. This size allows for one-handed operation while providing enough surface area to house the 2.8-inch display and control buttons. A standard 1/4-inch tripod mounting thread is integrated into the base, enabling users to securely mount the device on a tripod for hands-free, stable monitoring over longer periods, which is useful for observing temperature changes in equipment or processes.

Uses and Placement

The thermal imager's specifications support its application across different fields where temperature is a key indicator of status, performance, or safety. Its design facilitates use both in planned inspections and responsive troubleshooting.

Event or Professional Use

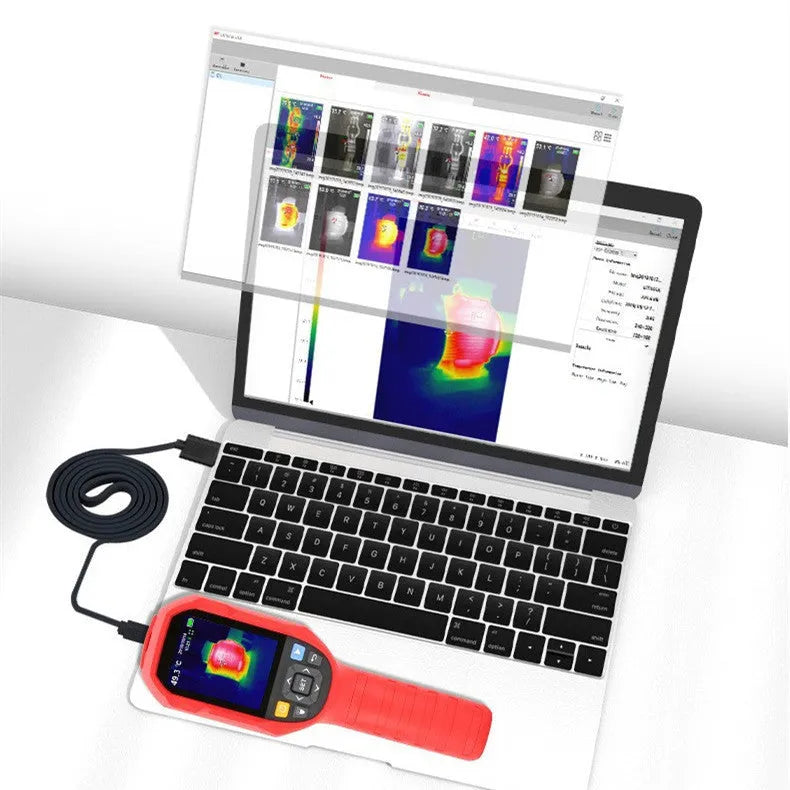

For professional technical work, the device's wide -10℃ to 400℃ range allows for checking electrical components, mechanical systems, and building insulation for hotspots or cold spots. The 9Hz frame rate provides a near real-time view of thermal changes. Captured images and data can be saved directly to the SD card and later analysed in more detail on a computer using the included PC software, which is valuable for creating reports, comparing readings over time, or sharing findings with colleagues or clients.

Everyday Home Use

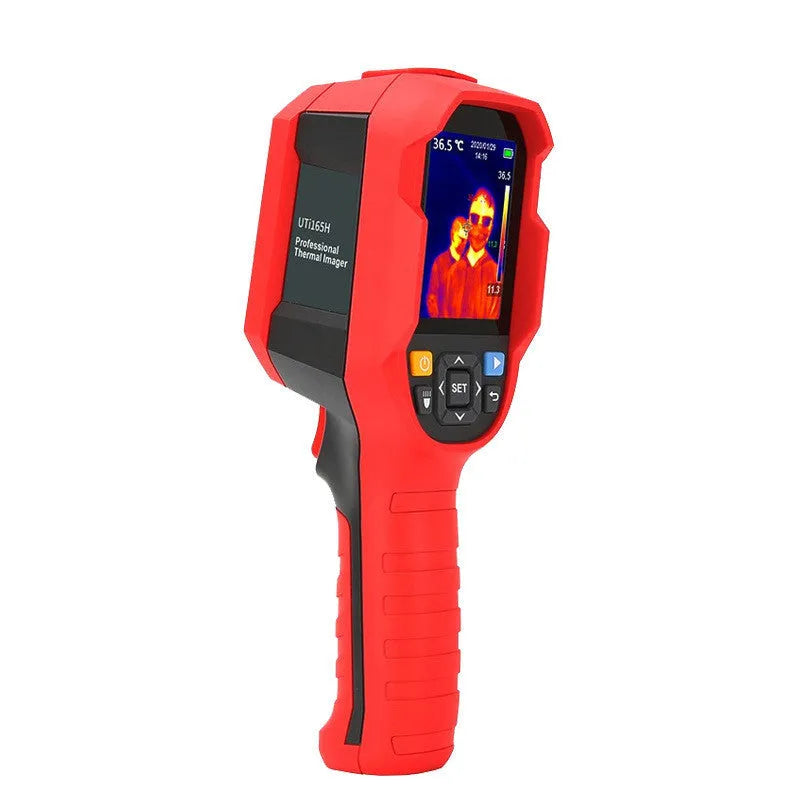

While primarily a technical instrument, one defined mode caters to a more general application: measuring human body temperature. The device offers a specific measurement range for this purpose from 30℃ to 45℃, with a stated accuracy of +0.5℃. This could be used for basic health monitoring in a home or workplace setting. However, its primary value in domestic contexts would likely be for DIY energy audits, such as identifying draughts around windows or checking for heat loss from pipes and heating systems.

Benefits and Buying Value

The value of this thermal imager lies in its combination of measurement functionality, data capture, and physical resilience, all contained within a single portable unit. It is positioned as a self-contained toolkit for thermal analysis.

Reuse and Low Maintenance

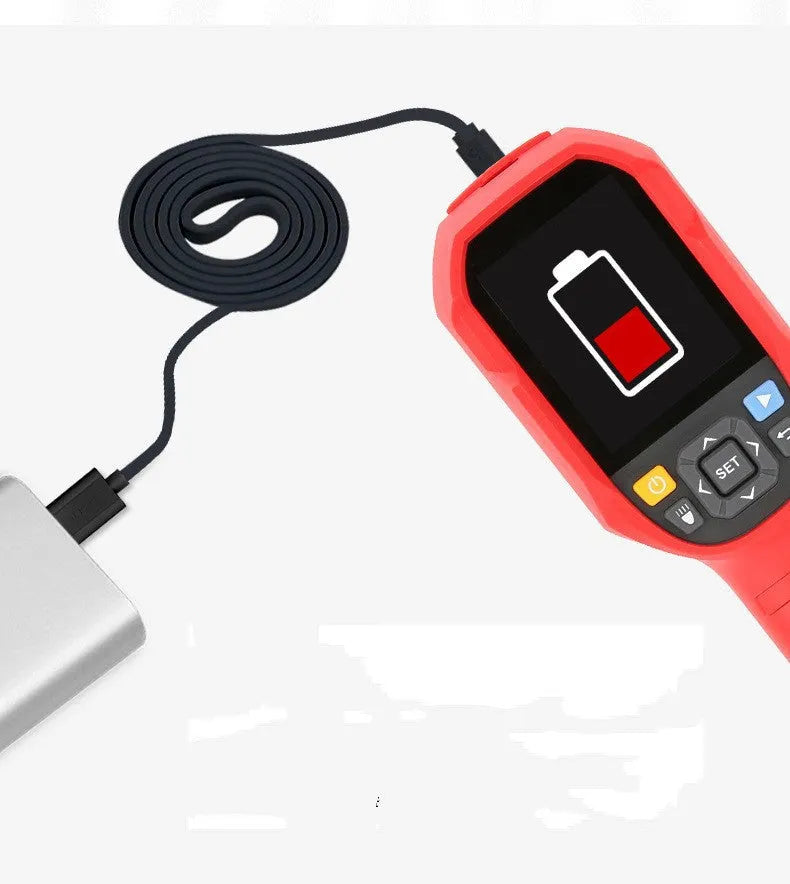

The product is designed for repeated use with minimal consumables. The rechargeable lithium battery is charged via the universal USB cable, eliminating the need for disposable batteries. The included 8GB SD card provides ample storage for thousands of thermal images, which can be managed, deleted, or transferred as needed. The rugged IP65 and drop-tested design aims to reduce the risk of failure from environmental exposure or accidental impacts, potentially extending its usable life in demanding conditions.

Why Choose This Product

This UTi thermal imager may be selected for its specific set of provided features: the defined temperature range and accuracy, the inclusion of storage and analysis software, and the stated durability ratings. The package contains all necessary items to begin operation immediately—imager, cable, card, and manual. For users requiring a dedicated thermal imaging tool that balances measurement capability with field-ready construction, this product presents a factual, specification-driven option without requiring additional accessory purchases for basic functionality.
