Water Level Sensor with Relay for Automatic Pump Control in Tanks and Ponds

Managing water levels in tanks, ponds, and other containers can be time-consuming and prone to human error. This water level sensor with relay controller automates the process, starting or stopping your pump when water reaches the sensor. The system is separated from the controller for good isolation, making it resistant to water and suitable for demanding environments. With both normally open and normally closed signal outputs, you can configure it to meet your specific needs. The white sensor unit is straightforward to install in water towers, fish tanks, ponds, base stations, machine rooms, garages, warehouses, archives, and similar locations.

Features and Construction

This sensor system is built around a reliable relay controller that reacts swiftly to water level changes. The sensor is physically separate from the electronic controller, which protects the circuitry and improves reliability in wet conditions. The high-sensitivity design ensures accurate detection and rapid response without false alarms.

Material and Build

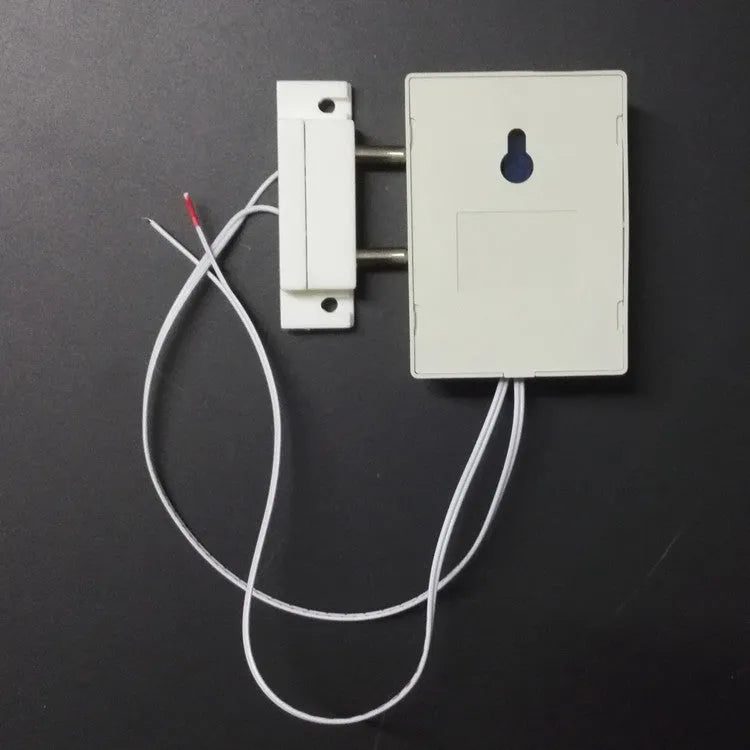

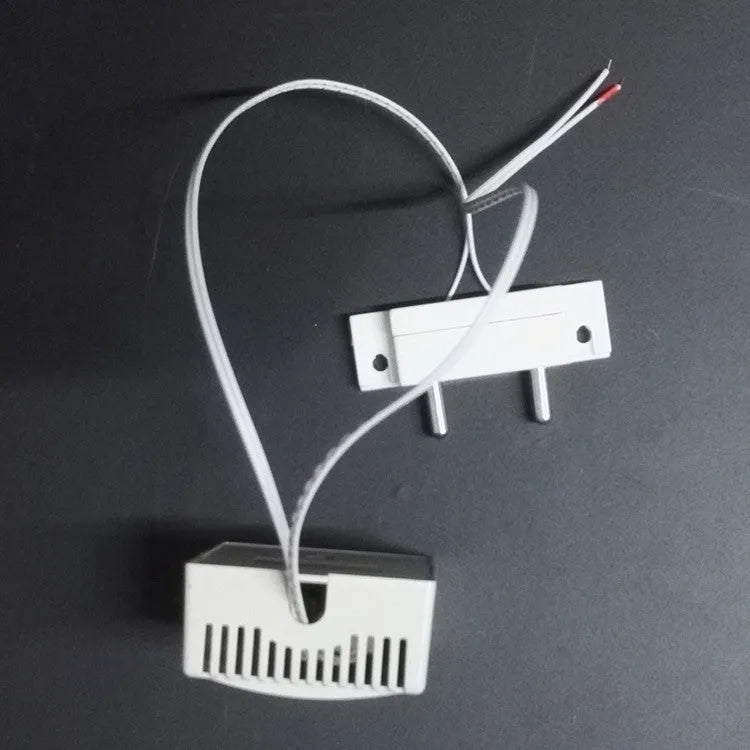

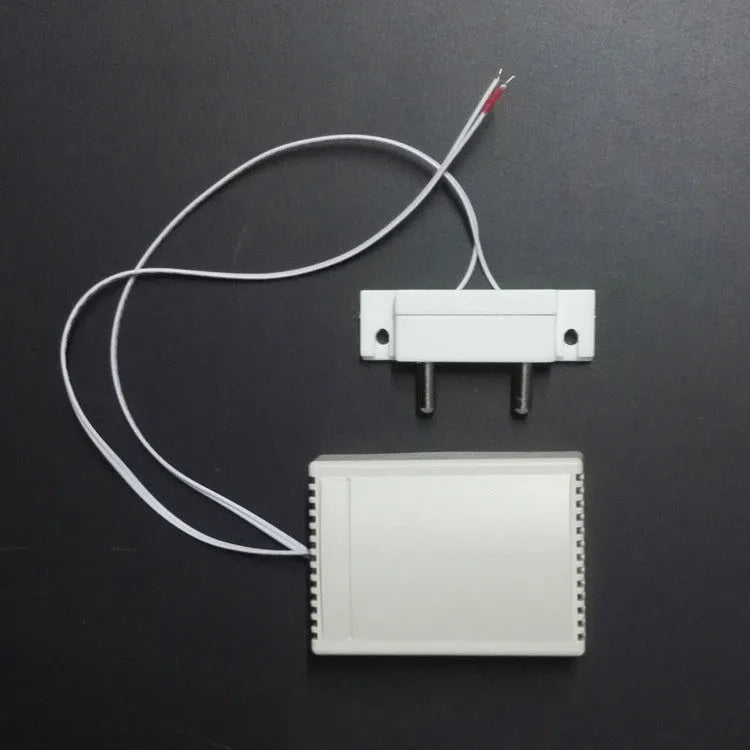

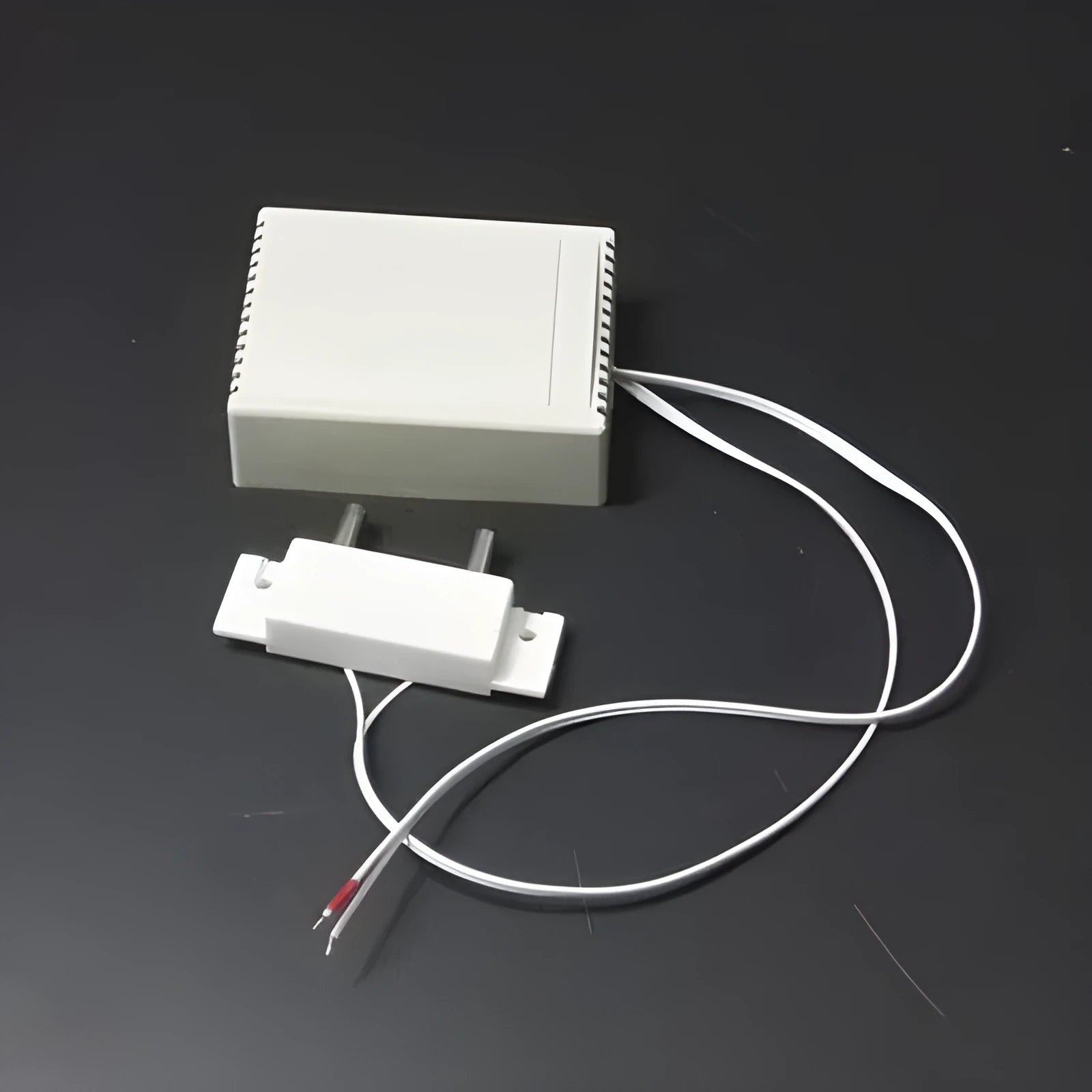

The sensor unit is made from white plastic, which is resistant to water contact. The controller houses the relay and signal processing electronics. The two components are connected by wire, allowing the sensor to be placed at the water level while the controller remains in a dry location.

Size and Practical Fit

Exact dimensions are not provided, but the system is compact enough for installation in confined spaces such as pump housings, control cabinets, or beside tanks. The sensor head is small enough to sit at a specific water level without obstructing flow.

Uses and Placement

The sensor and relay system is designed for a wide range of water-level monitoring and pump control applications. Its normally open and normally closed outputs give you flexibility in how you wire it to pumps, alarms, or other equipment.

Event or Professional Use

Professional applications include water tower fill control, pumping station automation, flood prevention in base stations and machine rooms, and leak detection in libraries, archives, and warehouses. The relay can handle high-current equipment up to 250V 10A AC or 30V 10A DC, making it suitable for industrial pumps and alarms.

Everyday Home Use

Around the home, the sensor is ideal for fish tanks, fish ponds, and garden water features. It automatically maintains a consistent water level, reducing the need for manual checks. It can also be used in hot water heaters to prevent overfilling or dry firing.

Benefits and Buying Value

The sensor provides practical benefits through automation and reliability. By removing the need for constant manual supervision, it saves time and prevents water damage from overflow or dry running. The separated sensor design reduces maintenance and increases longevity in wet environments.

Reuse and Low Maintenance

The electronics are sealed and separated from the water, so the sensor itself requires minimal cleaning. The relay can be wired into existing control systems and reused across different installations. There are no consumable parts, and the unit works on standard 10-15VDC power.

Why Choose This Product

The sensor offers a straightforward solution for automatic water level control without complex programming or expensive controllers. It works out of the box with basic electrical connections. The included normally open and normally closed outputs give you flexibility, and the high sensitivity ensures you are alerted to water level changes quickly and accurately.
