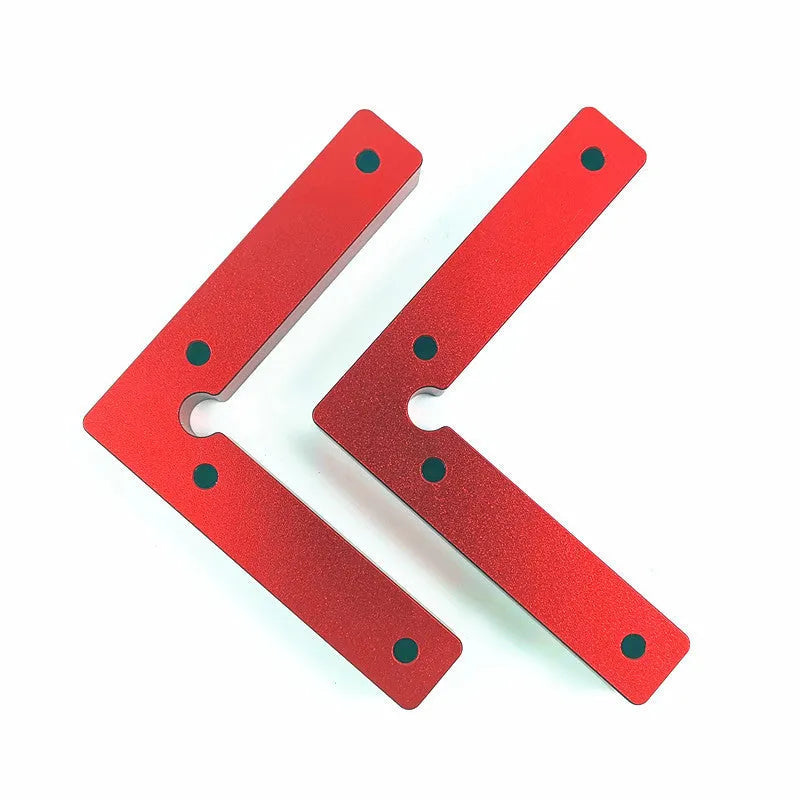

Aluminium Right Angle Positioning Block for Precise Woodworking Jigs and Fixtures
This 90-degree right angle positioning block is a fundamental tool for woodworkers and hobbyists who require consistent, square reference points. Constructed from aluminium alloy 6061, it delivers a rigid and lightweight base perfect for building jigs, guiding saw cuts, or setting up assembly fixtures. Its core value lies in providing a reliable physical standard for right angles, eliminating guesswork and improving the accuracy of projects from simple boxes to complex joinery. The inclusion of a laser-etched scale adds a direct measurement capability, streamlining the layout process directly at the workbench.
Features and Construction
This fixture is designed with practicality and precision as its foremost qualities. Its construction focuses on delivering a stable, accurate tool that integrates seamlessly into a workshop environment, supporting a variety of woodworking tasks that depend on perfect 90-degree angles.
Material and Build
The block is fabricated from aluminium alloy 6061, a material chosen for its favourable strength-to-weight ratio and machining characteristics. This alloy provides the necessary rigidity to act as a trustworthy reference edge without adding excessive weight to your jig or fixture. The precision manufacturing process ensures each block meets consistent tolerances, contributing to its role in quality assurance for your woodworking projects.
Size and Practical Fit

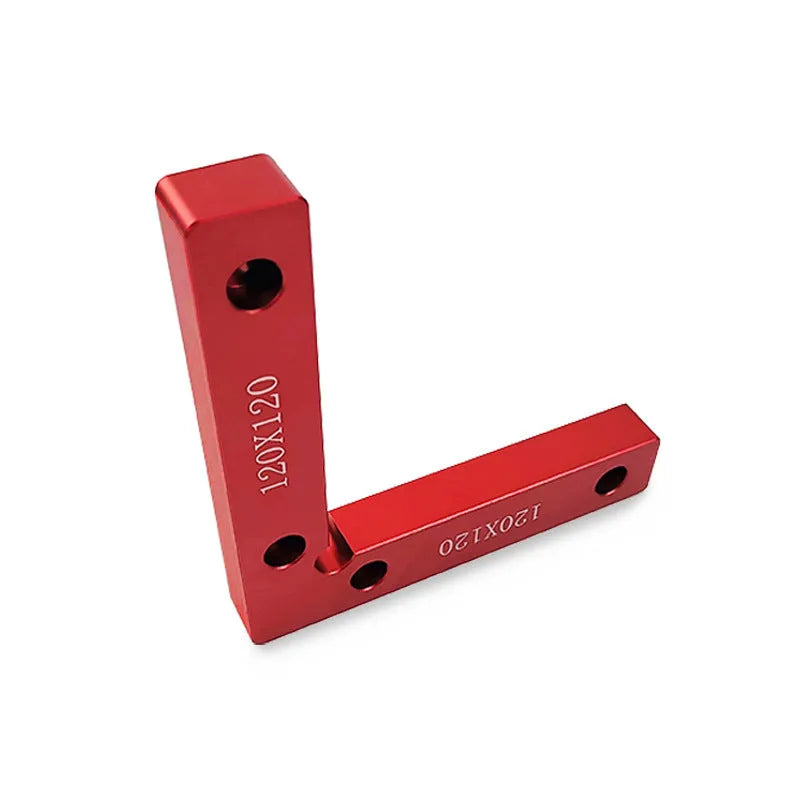

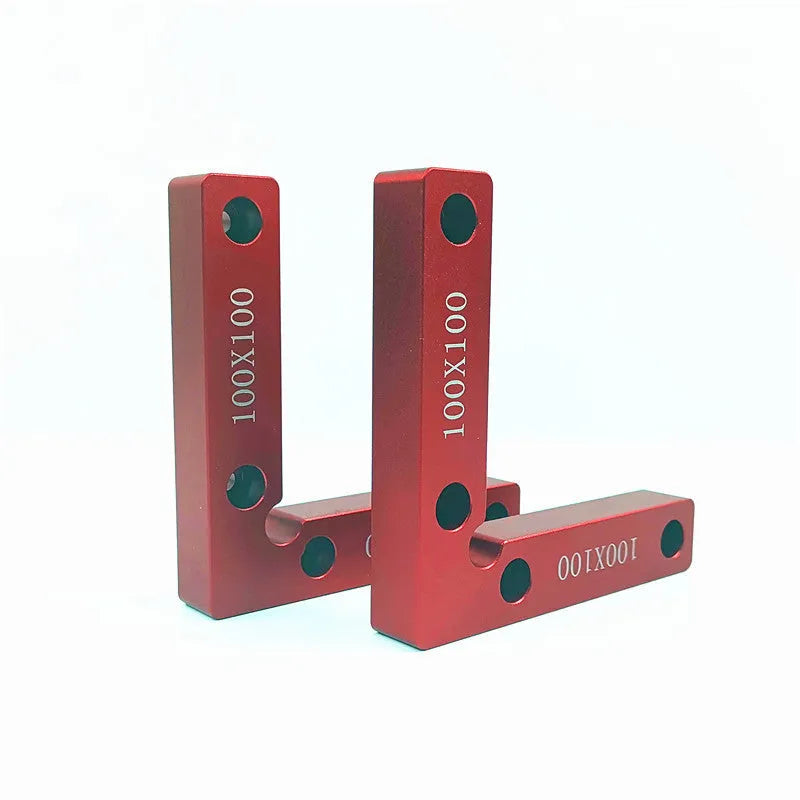

The positioning block is offered in two specific sizes to suit different project scales: a 100mm x 100mm block and a 120mm x 120mm block. The overall product dimensions are 40mm in height, 130mm in width, and 210mm in length. This sizing provides a substantial contact surface for clamping workpieces while remaining manageable on the bench. The choice of size allows you to select the block that best fits the scale of your typical work, whether for smaller detailed joints or larger panel assembly.
Uses and Placement
Its primary function is to serve as a fixed, accurate right-angle guide within a workshop. This tool finds its place in both dedicated shop setups and for specific, repeatable tasks, helping to standardise results across multiple projects or production runs.
Event or Professional Use
For professional settings or workshop environments where repeatability is key, this block acts as a master square for building custom jigs. It can be permanently mounted to a jig base to create a foolproof guide for a router, jigsaw, or circular saw, ensuring every cut is perfectly square. Its accuracy supports efficient batch production of components like cabinet sides, drawer boxes, or frame parts.
Everyday Home Use

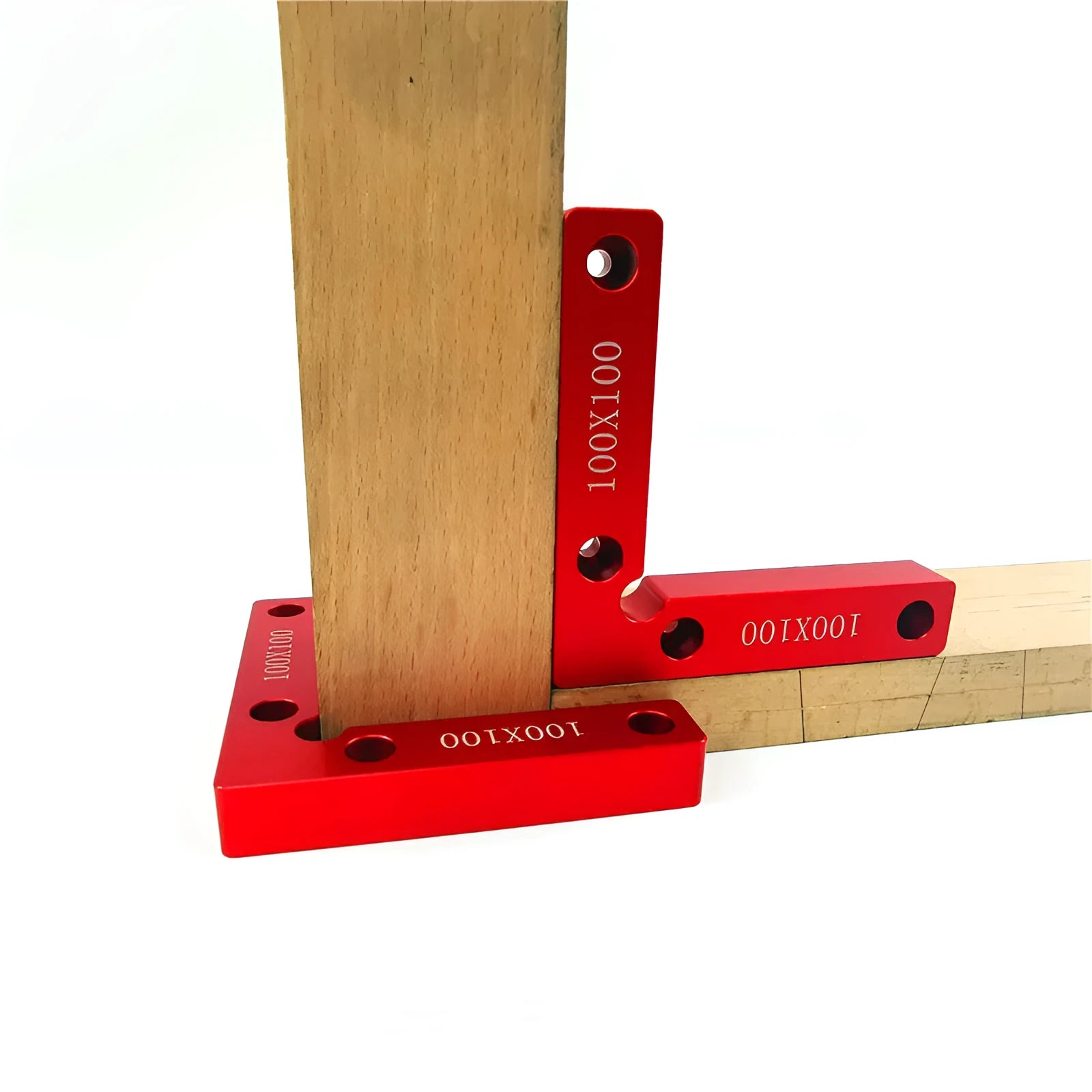

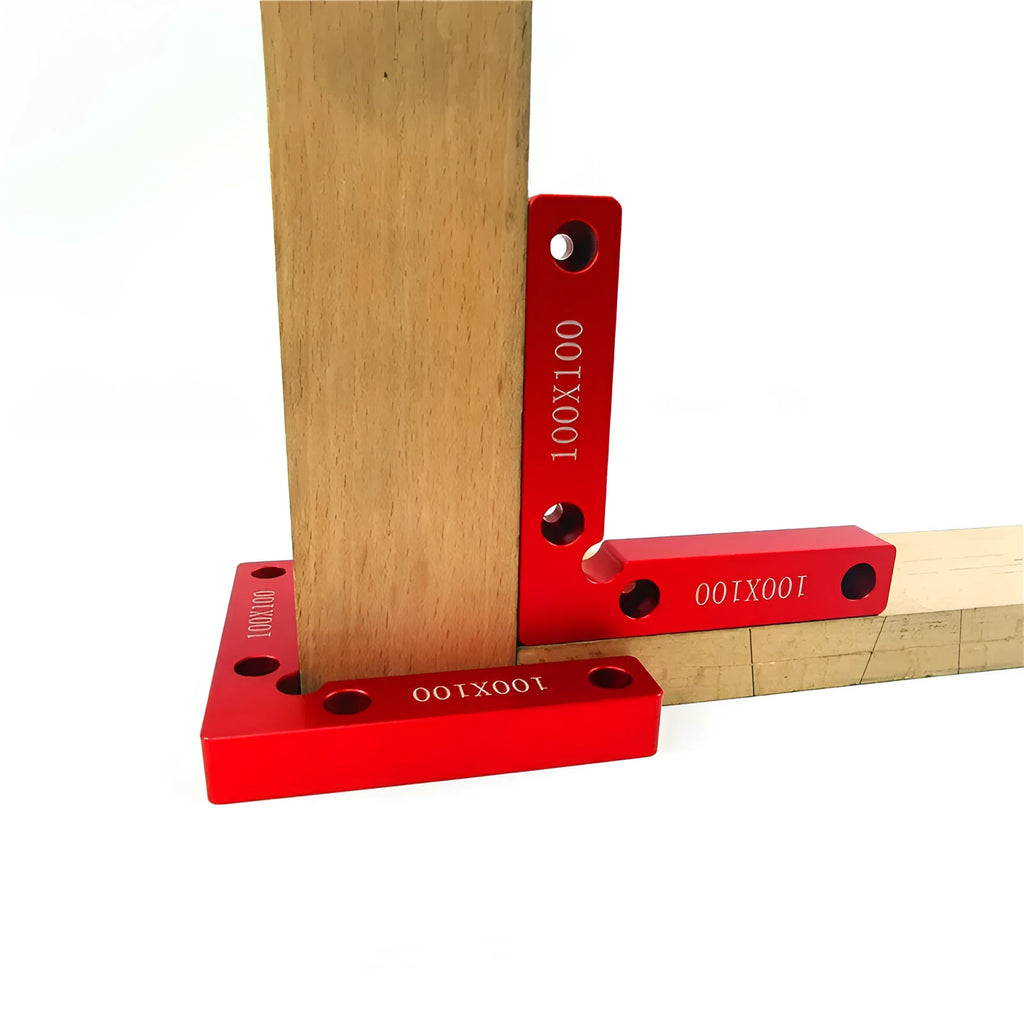

For the home workshop enthusiast, this block simplifies one-off projects that require precision. It can be used to check the squareness of assembly, as a setup block for table saw fences, or as a guide for hand-cutting mitres. The convenient operation, aided by the laser-etched scale, means you can quickly measure and mark directly from the block, reducing the need for multiple tools and potential measurement errors.
Benefits and Buying Value
The value of this tool is rooted in its ability to improve accuracy and save time on setup. It represents a focused investment in workshop fundamentals that pays back through more professional results and less material waste from inaccurate cuts.
Reuse and Low Maintenance
As a solid metal tool, this positioning block is built for long-term reuse. Its aluminium construction is resistant to rust and corrosion under normal workshop conditions. Maintenance is minimal; simply keeping the reference edges clean and free of debris is sufficient to preserve its accuracy. The laser-etched scale is durable and should not wear off under typical handling, ensuring the tool remains useful for years.
Why Choose This Product
Choosing this aluminium right angle block means selecting a tool that provides a concrete, physical standard for squareness. Unlike makeshift blocks or adjustable squares that can drift, this fixture offers a fixed, reliable 90-degree angle. Its dedicated design as a 'fixing fixture for woodworking jigsaw with 90° right angle clamp' speaks to its targeted utility, making it a more specialised and effective solution than a general-purpose tool for critical squaring operations.
