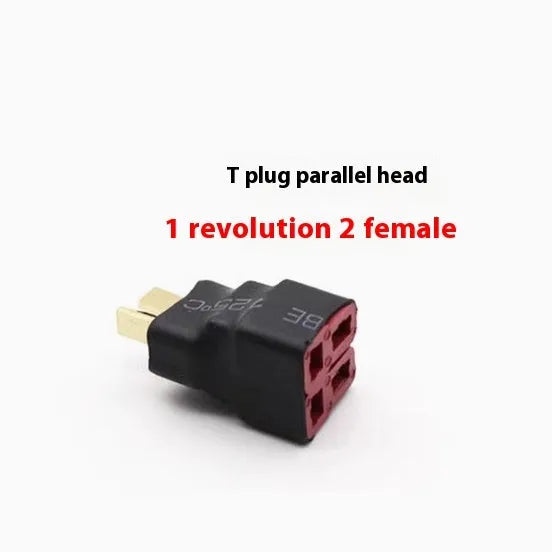

XT60 T Plug Parallel Series Converter for Two Lithium Batteries

This compact converter head lets you connect two lithium batteries in either parallel or series configuration. It is intended for users who need to combine packs for different voltage or capacity outcomes, and it uses XT60 and T plug connections. The design is wireless and compact, with two plug orientations that indicate which mode you are using. In parallel mode, the voltage remains unchanged and the capacity increases; two 3S 11.1V 2200mAh batteries become a 3S 11.1V 4400mAh pack. In series mode, the voltage increases and the capacity remains unchanged; two 3S 11.1V 2200mAh batteries become a 6S 22.2V 2200mAh pack. The source recommends using two batteries with the same capacity and the same voltage value, as otherwise the two batteries will generate internal friction between each other. The other end is used to connect two batteries, and you can also first convert the two batteries to the XT60 interface with a separate T plug to XT60 wireless interface before using this product.

Features and Construction

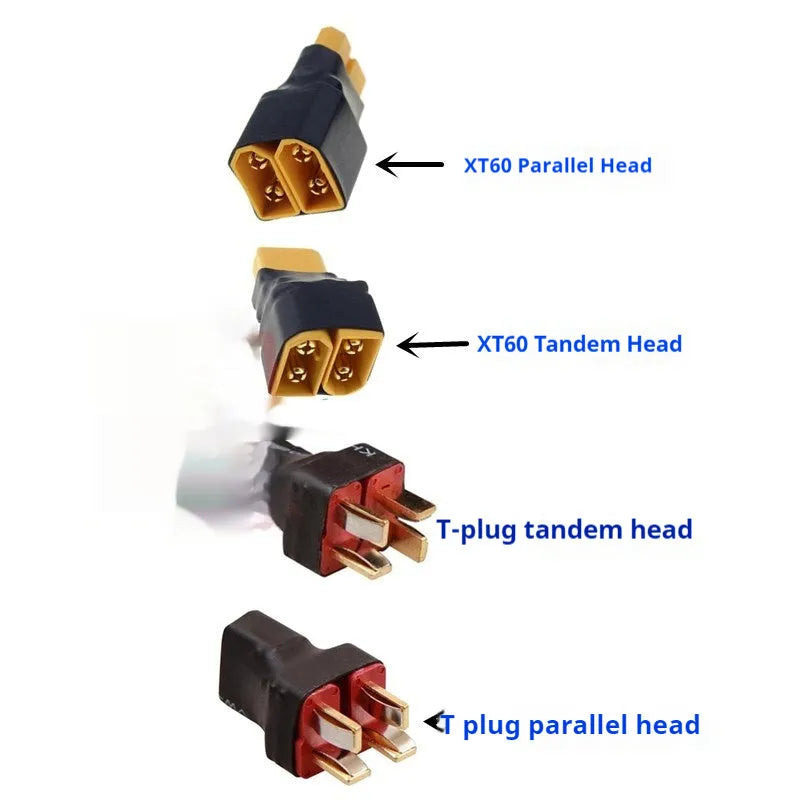

The converter is built around XT60 and T plug compatibility and provides a straightforward way to combine two lithium batteries. Its main identifying feature is the orientation of the two plugs, which tells you whether the head is set for parallel or series connection. This helps you avoid confusion when swapping between configurations.

Material and Build

The source text does not state specific materials for this converter. It is described as a wireless compact parallel/series head with XT60 and T plug connections. The practical value comes from the plug arrangement rather than from any stated material properties.

Size and Practical Fit

No dimensions or weight are provided in the source text. The product is described as compact and wireless, which means it does not use a wired lead between the two battery connections. The fit depends on the XT60 and T plug connectors on your batteries and any separate adapter you use.

Uses and Placement

This converter is used when you need to join two lithium batteries to change either capacity or voltage. It is suited to setups where XT60 or T plug connections are already present, and it can be used with a separate T plug to XT60 wireless interface if you need to convert both batteries to XT60 first.

Event or Professional Use

For events or professional tasks that require a specific battery configuration, the converter allows two packs to be combined in parallel or series. The source gives examples using 3S 11.1V 2200mAh batteries, showing how the same pair can produce either 3S 11.1V 4400mAh in parallel or 6S 22.2V 2200mAh in series. Use matching capacity and voltage batteries to reduce internal friction.

Everyday Home Use

At home, this converter can help you make use of two compatible lithium batteries without needing a permanently wired harness. The plug orientation system means you can check whether the head is set to parallel or series before connecting. Keep to the same capacity and voltage recommendation for both batteries.

Benefits and Buying Value

The main benefit is one compact head that supports two battery connection modes. It avoids the need for separate series and parallel leads if you already have the matching plugs. The source also explains how to identify each mode by looking at the plug orientation, which keeps the setup clear.

Reuse and Low Maintenance

Because the converter is a reusable adapter head, it can be kept with your battery equipment and used whenever you need to combine two packs. No maintenance instructions are given in the source text. Store it with your other connectors and check the plug orientation before each use.

Why Choose This Product

Choose this converter if you need to connect two lithium batteries in parallel or series and want a compact, wireless head rather than a wired harness. It supports XT60 and T plug connections and includes guidance on matching battery capacity and voltage. The packing list includes one conversion head.
